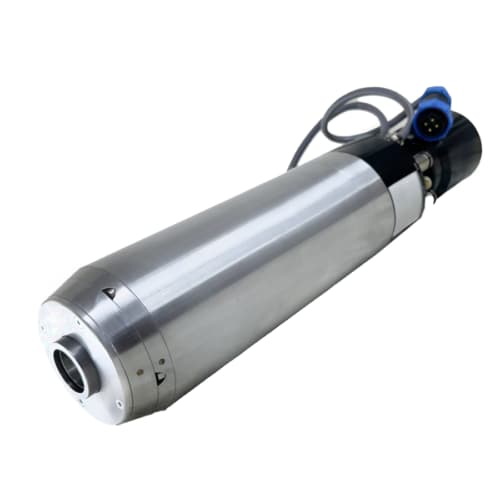

CNC ATC Spindle Motor 3.7 kW, 40000 RPM, 380V Water Cooled ISO20
The 3.7 kW Water-Cooled ATC Spindle Motor represents the pinnacle of high-velocity CNC engineering, designed specifically for automated micro-machining and high-precision milling. Delivering a robust 3.7 kW of power at a staggering 40,000 RPM, this motor is built on a 4-pole architecture capable of reaching an ultra-high frequency of 1333 Hz. The integrated ISO20 tool interface enables seamless Automatic Tool Change (ATC) operations, significantly boosting productivity in complex production cycles. Its advanced water-cooling system provides superior heat dissipation, essential for maintaining the thermal stability and longevity of the high-precision bearings during extreme rotational speeds. This spindle is the ideal choice for industrial fabricators requiring surgical precision, rapid tool transitions, and high-velocity material removal in 380V machining environments.
- Ultra-High Speed 40,000 RPM for advanced micro-machining
- Automatic Tool Change (ATC) for seamless, high-productivity operations
- Industrial 3.7 kW Power for robust precision milling
- Advanced 1333 Hz Frequency for stable high-velocity performance
- Precision ISO20 Spindle interface for minimal runout
- Continuous Duty Water Cooling for maximum thermal management
Comparative Technical Spindle Motor Configurations Matrix
Use the structural data catalog matrix below to evaluate power outputs, maximum RPM, operating voltages, and cooling styles across standard TriQuench CNC spindle models.
| Spindle Capacity | Operating Speed | Operating Voltage | Cooling System |
|---|---|---|---|
| 12.0 kW | 18,000 RPM | 380 V | Water-Cooled |
| 0.8 kW | 24,000 RPM | 220 V | Air-Cooled (Long Shaft) |
| 3.7 kW | 40,000 RPM | 380 V | Water-Cooled ISO20 |
| 9.0 kW | 18,000 RPM | 380 V | Air-Cooled |
Technical Specifications
| Technical Parameter | Engineering Specification Value |
|---|---|
| MODEL NUMBER | W37400R380ATC-ISO20 |
| POWER RATING | 3.7 kW |
| MAX SPEED | 40,000 RPM |
| OPERATING VOLTAGE | 380 V AC |
| FREQUENCY | 1333 Hz |
| POLE COUNT | 4 Pole |
| TOOL INTERFACE | ISO20 |
| MECHANICAL | coolingType: Water Cooled | bodyType: Ultra High Speed ATC Series | automationReady: ATC Drawbar Integrated |
Industrial Applications
| Usage Scenario | Target Industry |
|---|---|
| Automated Precision CNC Machining Centers | Precision Engineering and Micro-Tooling |
| Ultra-High Speed Micro-Milling and Drilling | Medical Device Manufacturing |
| Advanced Aerospace and Medical Component Machining | Aerospace and Defense Instrumentation |
| High-Velocity Composite and Aluminum Routing | Electronics and Semiconductor Fabrication |
| Intricate Die and Mold Finishing | Advanced Machine Tool Manufacturing |
| High-Accuracy R&D and Prototyping | General Engineering |
Technical FAQ & Operational Guide
What kind of frequency drive (VFD) is required for 40,000 RPM?
This spindle operates at an ultra-high frequency of 1333 Hz. You must use a specialized high-frequency Variable Frequency Drive (VFD) that supports output frequencies above 1333 Hz. Standard industrial VFDs are typically capped at 400-600 Hz and will not work.
Why is ISO20 preferred for 40,000 RPM?
ISO20 is a precision-tapered interface designed for high-velocity stability. Its smaller, balanced mass compared to BT30 ensures minimal vibration and runout at 40,000 RPM, which is critical for maintaining surface finishes in micro-milling.
Does this ATC spindle require compressed air?
Yes, Automatic Tool Change (ATC) spindles require clean, dry compressed air to operate the internal pneumatic drawbar that releases and grabs the tool holders, and often for spindle taper air-blow to keep the interface clean.
