CNC EDGE Banding Spindle Motor 0.8 kW, 18000 RPM, 380V/220V

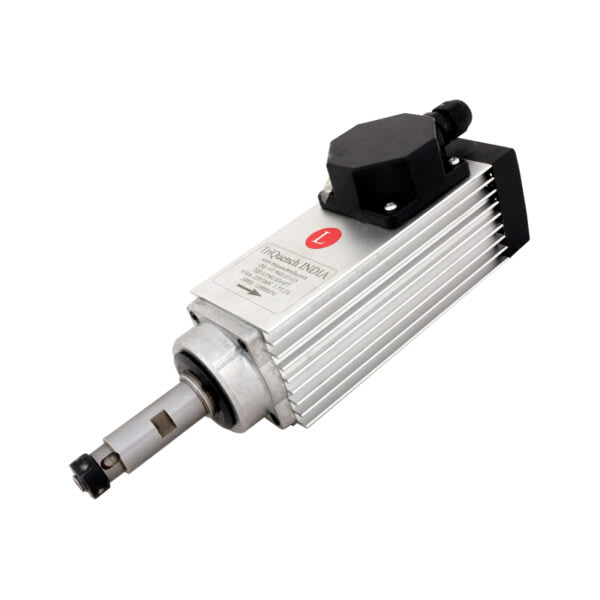

The CNC EDGE Banding Spindle Motor 0.8 kW is a specialized industrial motor designed specifically for the high-precision requirements of edge banding machines. Operating at a peak speed of 18,000 RPM with a 300 Hz frequency, it delivers the consistent performance needed for high-quality finishing in woodworking. This model is uniquely versatile, supporting both 380V and 220V power architectures to suit various industrial setups. Engineered for longevity, it features a robust P4 bearing configuration (6005 & 6000) and an ER-11 collet interface for accurate tool holding. Its compact and durable design ensures it can withstand the continuous duty cycles typical of industrial edge banding operations, making it an essential component for furniture manufacturing and commercial cabinetry production.
- Versatile Dual Voltage support (220V/380V)
- High-Speed 18,000 RPM for precision edge finishing
- Precision P4 Grade Bearing Assembly (6005 & 6000)
- Industrial 300 Hz High-Frequency stable operation
- Durable architecture tailored for continuous edge banding
- ER-11 Collet interface for secure tool clamping
Comparative Technical Spindle Motor Configurations Matrix
Use the structural data catalog matrix below to evaluate power outputs, maximum RPM, operating voltages, and cooling styles across standard TriQuench CNC spindle models.
| Spindle Capacity | Operating Speed | Operating Voltage | Cooling System |
|---|---|---|---|
| 12.0 kW | 18,000 RPM | 380 V | Water-Cooled |
| 0.8 kW | 24,000 RPM | 220 V | Air-Cooled (Long Shaft) |
| 3.7 kW | 40,000 RPM | 380 V | Water-Cooled ISO20 |
| 9.0 kW | 18,000 RPM | 380 V | Air-Cooled |
Technical Specifications
| Technical Parameter | Engineering Specification Value |
|---|---|
| MODEL NUMBER | E08180S2238WF |
| POWER RATING | 0.8 kW |
| MAX SPEED | 18000 RPM |
| OPERATING VOLTAGE | 380 V / 220 V (Dual) |
| RATED CURRENT | 3.9 A (220V) / 2 A (380V) |
| FREQUENCY | 300 Hz |
| RATED TORQUE | 0.31 N.m |
| POLE COUNT | 2 Pole |
| COLLET INTERFACE | ER-11 |
| BEARING CONFIGURATION | 6005 P4 (Front), 6000 P4 (Rear) |
| MECHANICAL | coolingType: Continuous Industrial Grade | bodyType: EDGE Banding Specific Series |
Industrial Applications
| Usage Scenario | Target Industry |
|---|---|
| Industrial CNC EDGE Banding Machines | Furniture Manufacturing Industry |
| Automated Woodworking Finishing Lines | Interior Design and Joinery |
| Commercial Furniture Production | Woodworking Machine Tool Production |
| Modular Kitchen Cabinet Fabrication | Cabinetry and Millwork Engineering |
| Precision Plywood and Board Edge Trimming | Industrial Board Processing |
Technical FAQ & Operational Guide
Can this motor run on both 220V and 380V?
Yes, this model features dual voltage support. It can be wired for either a 220V or 380V input, allowing it to adapt to different factory power standards without needing a different motor.
Is this motor suitable for continuous use in a production line?
Absolutely. It is specifically designed for the edge banding industry, which requires long hours of continuous operation. The P4 grade bearings are chosen for their durability and thermal stability.
What is the benefit of the 300 Hz frequency for this application?
The 300 Hz frequency allows the motor to reach high speeds (18,000 RPM) efficiently while maintaining the torque necessary for clean edge trimming on various types of boards and laminates.
