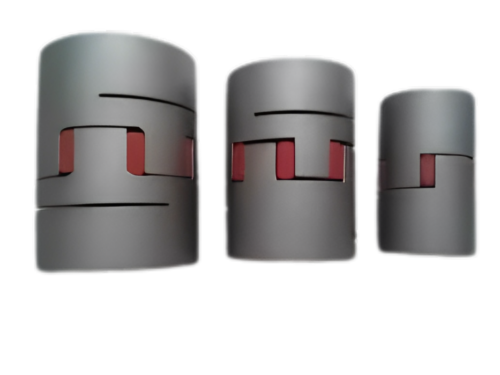

Industrial DIA40 Flexible Axis Coupling - High Torque Motor-to-Shaft Connector

The Industrial DIA40 Flexible Axis Coupling is a critical transmission component designed to bridge the connection between motor shafts (Servo or Stepper) and ball screw drives in high-precision CNC machinery. Featuring a robust 40mm outer diameter, this coupling is manufactured from a high-grade steel alloy to provide exceptional torsional rigidity while maintaining the flexibility necessary to absorb operational vibrations. Its zero-backlash design ensures surgical accuracy during rapid direction changes, making it ideal for the X, Y, and Z axes of CNC routers. The coupling effectively compensates for minor parallel, angular, and axial misalignments, which protects expensive motor bearings and lead screws from premature wear and mechanical stress. Whether used in industrial robotics or heavy-duty CNC milling centers, the DIA40 series delivers reliable, low-maintenance motion transmission.

Zero-backlash transmission for high-precision motion control
Superior vibration dampening to improve surface finish quality
Compensates for parallel, angular, and axial misalignments
High-grade steel alloy construction for maximum durability
High torsional stiffness for rapid acceleration and deceleration
Clamp-style or setscrew-style secure fastening options

Engineering Analysis & Technical Data

Technical Parameter	Specification Details
OUTER DIAMETER	40 mm
STANDARD LENGTHS	50mm / 55mm / 65mm
MATERIAL	Hardened High-Grade Steel Alloy / Aluminum Alloy Options
MECHANICAL	couplingType: Flexible Jaw / Spider or Beam Style \| precisionGrade: Industrial Motion Grade \| boreSizes: Available in Custom Bore Configurations (e.g., 10mm to 22mm)

Industrial Applications

Usage Scenario	Target Industry
CNC Router Axis Drive Connections (X, Y, Z)	CNC Machine Tool Manufacturing
Servo and Stepper Motor Transmission Systems	Industrial Automation and Robotics
Industrial Robotics and Pick-and-Place Machinery	Textile and Packaging Machinery
Automated Packaging and Textile Machines	Aerospace and Automotive Component Engineering
Precision Lead Screw and Ball Screw Assemblies	Precision Instrumentation Fabrication
High-Speed Laser and Plasma Cutting Tables	General Engineering

Technical FAQ

Does this coupling come with pre-drilled bore sizes?

The DIA40 series is available in several standard bore combinations (e.g., 12mm to 14mm) to fit most NEMA 34 or Servo motor shafts and 16mm/20mm ball screws. Custom bore sizes can be provided upon request.

What is the benefit of a steel alloy coupling over aluminum?

While aluminum is lighter, high-grade steel alloy couplings like the DIA40 provide significantly higher torsional strength and durability, making them better suited for heavy-duty CNC operations where high torque and frequent reversals occur.

Will this coupling help if my motor and ball screw aren't perfectly aligned?

Yes. The flexible design is specifically engineered to handle minor parallel and angular misalignments, protecting your motor bearings and screw from the stress that a rigid coupling would cause.
