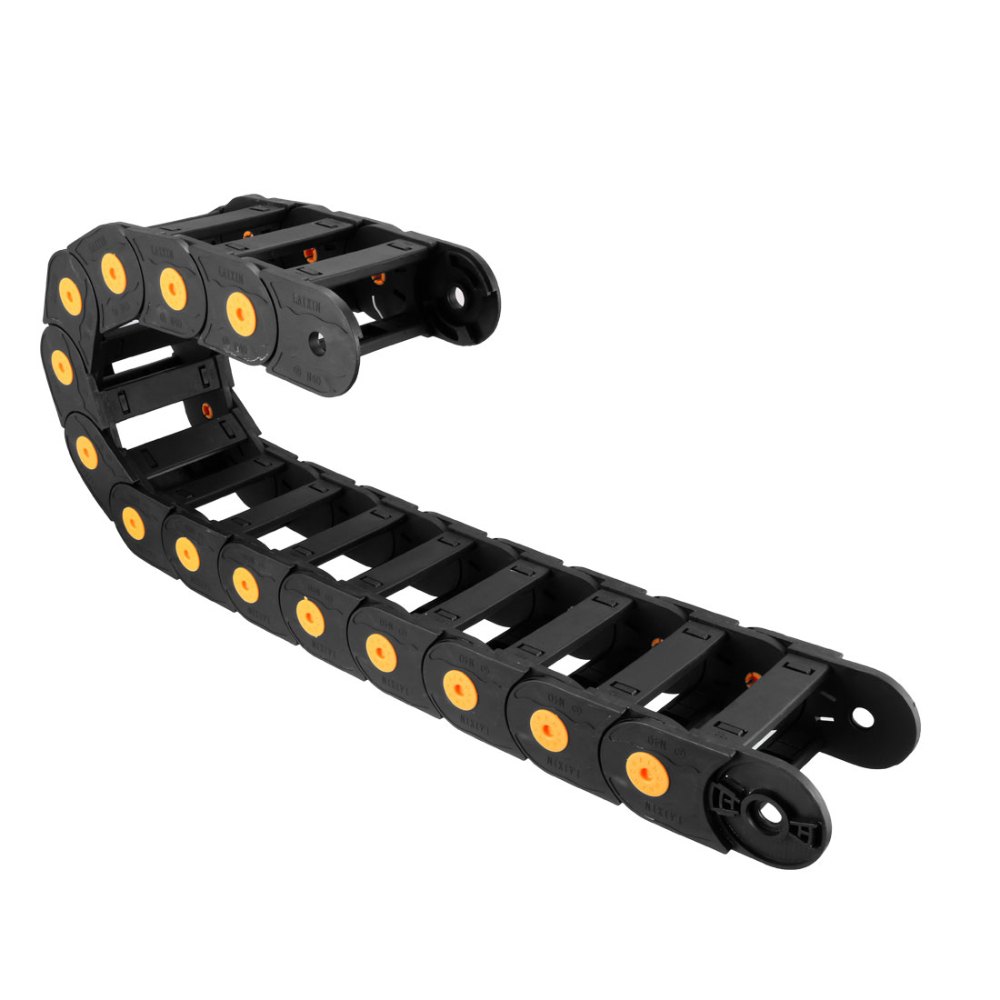

Industrial Cable Drag Chain | Flexible Wire Carrier for CNC Machinery

The Industrial Cable Drag Chain series is a vital protective component for any machinery involving repetitive linear or multi-axis movement. Engineered from reinforced high-grade engineering plastics (Nylon/PA66), these carriers are designed to guide and protect electrical cables, data lines, and pneumatic hoses from mechanical wear, tension, and external debris. By maintaining a specific bending radius, the drag chain prevents cable fatigue and internal wire breakage, which are common causes of machine downtime. Its modular, link-based architecture allows for easy length adjustment and rapid installation even in tight industrial enclosures. Whether utilized on a high-speed CNC gantry or a heavy-duty automated conveyor, these drag chains ensure smooth, silent, and tangle-free operation, significantly extending the service life of your machine's wiring infrastructure.

Reinforced Nylon construction for high-speed and long-term durability
Reduces cable mechanical stress by maintaining optimal bending radii
Prevents tangling and external damage in high-vibration environments
Modular link design for customizable lengths and easy maintenance
Low-noise operation optimized for high-acceleration industrial axes
Available in bridge-type (open) or semi-enclosed configurations

Engineering Analysis & Technical Data

Technical Parameter	Specification Details
MODEL NUMBER	Industrial Drag Chain Series
MATERIAL	Reinforced Engineering Plastic (PA66 / Nylon)
OPERATING TEMPERATURE	-40°C to +120°C
AVAILABLE SIZES	Various Inner Dimensions (e.g., 18x25, 25x38, 35x50, 45x75 mm)
MECHANICAL	type: Bridge-Type / Non-Opening or Snap-Open Options \| bendingRadius: Variable (Specific to Link Size) \| maxTravelSpeed: Up to 5m/s (Depending on load)

Industrial Applications

Usage Scenario	Target Industry
CNC Router X, Y, and Z Axis Cable Management	CNC Machine Tool Manufacturing
Industrial Robotics and Pick-and-Place Machinery	Industrial Automation and Robotics
Automated Conveyor and Packaging Systems	Logistics and Material Handling
Plasma, Laser, and Waterjet Cutting Tables	Textile and Apparel Machinery
Large-Format 3D Printers and Additive Manufacturing	Automotive and Aerospace Engineering
Woodworking and Stone Machining Centers	General Engineering

Technical FAQ

How do I choose the right size drag chain for my machine?

You should calculate the total diameter of all cables and hoses passing through the chain. Leave approximately 10% 'clearance' space to allow the cables to move freely during bending. The inner height of the chain should be larger than your thickest cable.

What is the difference between Bridge-type and Enclosed-type?

Bridge-type chains are open, allowing for better heat dissipation and easier visual inspection. Enclosed-type chains protect cables from falling debris, wood chips, or metal sparks, making them ideal for heavy machining environments.

Can I add or remove links to change the length?

Yes. Most industrial drag chains are modular. You can easily snap links apart or together using a flat-head screwdriver to customize the length exactly to your machine's travel requirements.

Detailed Overview of Industrial Cable Drag Chain | Flexible Wire Carrier for CNC Machinery

Advanced Engineering & Integration

high durability flexible cable drag chain for industrial cnc routers. buy reinforced nylon wire carrier online india. best price cable drag chain for high speed machine axes. industrial energy chain technical specifications ahmedabad. bridge type cable carrier for woodworking and metalworking machines

This CNC Router Accessories is preferred for .
