HSK100A Tool Holder Tightening Fixture | Heavy-Duty Locking Stand

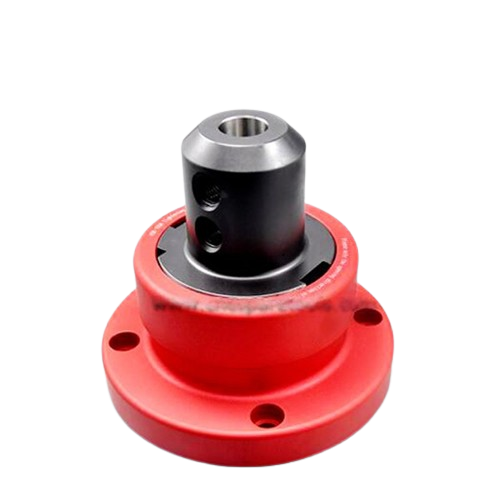

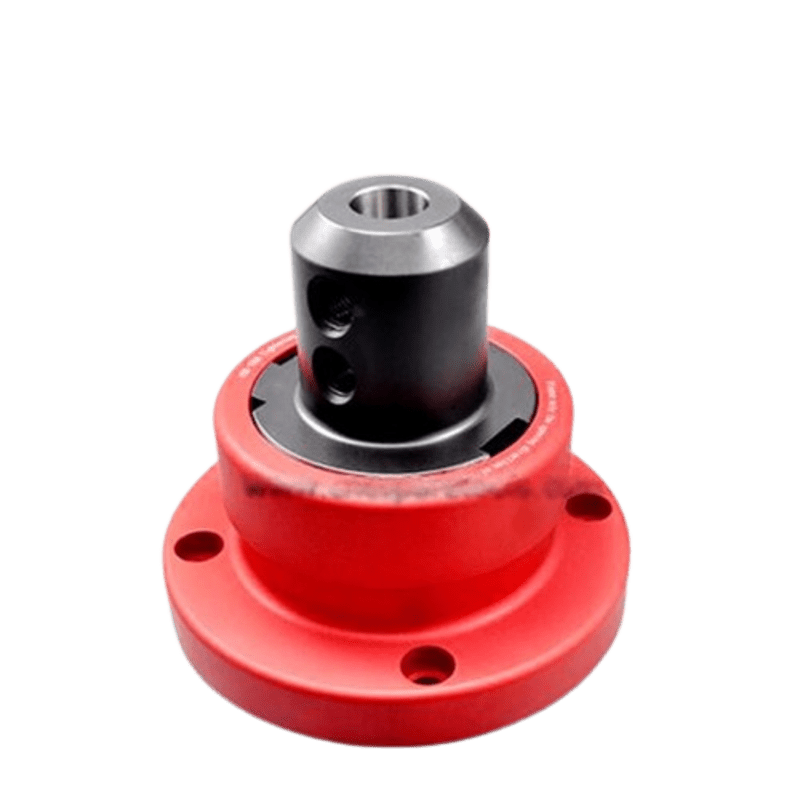

The TriQuench HSK100A Tool Holder Tightening Fixture is an essential maintenance and setup tool for modern CNC machining environments. Specifically designed for the HSK100A taper standard, this locking stand provides a robust and non-slip platform for the high-torque application required when tightening or loosening collet nuts and pull studs. Manufactured from high-tensile alloy steel and finished with a precision-ground interface, the fixture ensures maximum contact area with the tool holder without causing surface marring or deformation. Its heavy-duty base is designed for secure mounting to a workbench, allowing operators to apply significant leverage safely. This fixture is a critical investment for ensuring consistent clamping torque and protecting expensive HSK100A spindle tooling from accidental damage during manual tool changes.

Surgically precise fit for all standard HSK100A tool holders
High-tensile alloy steel construction for industrial-grade durability
Surface-hardened components to resist wear and high-torque stress
Secure base-mounting holes for stable workbench installation
Non-marring design protects expensive tool holder tapers from scratches
Ergonomic layout allows for efficient tool assembly and disassembly
Corrosion-resistant finish for long-term workshop use

Engineering Analysis & Technical Data

Technical Parameter	Specification Details
MODEL NUMBER	TQ-HSK100A
TAPER COMPATIBILITY	HSK100A
MATERIAL GRADE	Premium Alloy Steel
HARDNESS RATING	HRC52-56 (Contact surfaces)
MOUNTING TYPE	Workbench Bolt-Down
MECHANICAL	baseWidth: 100 mm \| totalHeight: 165 mm \| weight: 4.5 kg (approx) \| lockingMechanism: Safety Pin / Friction Lock

Industrial Applications

Usage Scenario	Target Industry
Manual Assembly of HSK100A Tool Holders	Precision Machine Tool Manufacturing
High-Torque Tightening of Collet Nuts and Pull Studs	Aerospace and Defense Engineering
Routine Tooling Maintenance in CNC Machine Shops	Heavy Automotive Component Machining
High-Precision Tool Assembly for Aerospace Machining	Mold and Die Industrial Fabrication
Heavy-Duty Milling and Boring Tool Setup	Industrial Robotics and Component Manufacturing
Spindle Tooling Inspection and Cleaning Stations	General Engineering
Educational and Vocational Machining Labs	General Engineering

Technical FAQ

Why is a dedicated fixture necessary for HSK100A tool holders?

HSK100A holders are large and require significant torque to secure the tool properly. Using a dedicated fixture prevents the holder from spinning or slipping, which could damage the precise taper or injure the operator.

Can this fixture be used for other HSK sizes like HSK63A?

No, this specific model is precision-machined for the HSK100A taper. Using a different size may result in a loose fit and potential damage to the tool holder.

Is mounting this fixture to a workbench required?

While it can sit on a flat surface, we strongly recommend bolting it to a heavy workbench to provide the stability needed when applying high levels of torque during tool assembly.
