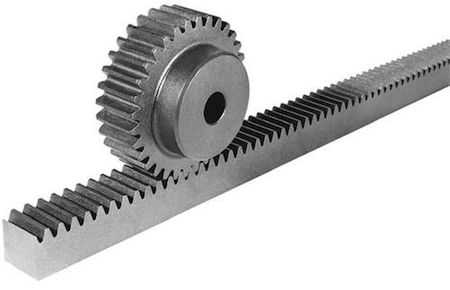

Industrial Precision Pinion Gear | High-Torque Linear Drive Component

The Industrial Precision Pinion Gear is a fundamental transmission component designed for high-speed, heavy-duty linear motion in CNC routers and industrial automation. Specifically engineered to mesh with high-accuracy racks, this pinion facilitates the critical conversion of motor-driven rotational torque into smooth, powerful linear movement. Manufactured from high-quality hardened steel, the gear teeth undergo specialized heat treatment to ensure maximum wear resistance and surface durability under constant load. Available in various module sizes (1.25M, 1.5M, 2M), it features a zero-backlash mounting profile when properly aligned, ensuring the surgical positioning accuracy required for engraving, milling, and high-speed laser cutting. Its robust construction minimizes mechanical deflection, making it the preferred choice for long-travel axes where ball screws are impractical.

Durable and high-precision construction for long-term industrial use
Efficient transmission of rotational motion to linear motion
Hardened gear teeth for superior wear resistance and longevity
Precision-ground bore for perfectly concentric shaft mounting
Compatible with straight and helical rack systems for smooth operation
Designed for high-acceleration industrial CNC applications

Engineering Analysis & Technical Data

Technical Parameter	Specification Details
MODEL NUMBER	Precision Pinion Series
MATERIAL	Hardened High-Quality Steel Alloy
AVAILABLE MODULES	1.25 Mod / 1.5 Mod / 2.0 Mod
TOOTH TYPE	Straight Spur / Helical Options
MECHANICAL	hardnessGrade: HRC 45-55 (Induction Hardened Teeth) \| precisionGrade: Industrial Grade (DIN 6/7) \| mounting: Keyway or Setscrew Secure Fastening

Industrial Applications

Usage Scenario	Target Industry
Industrial CNC Router X and Y Axis Drives	CNC Machine Tool Manufacturing
Heavy-Duty Plasma and Laser Cutting Gantry Systems	Aerospace and Automotive Engineering
Industrial Robotics and Pick-and-Place Machinery	Signage and Large-Format Fabrication
Automated Packaging and Material Handling Systems	Metalworking and Heavy Machinery Fabrication
Stone and Marble Cutting Bridge Saws	Stone Processing and Architectural Masonry
Large-Format 3D Printing Linear Stages	General Engineering

Technical FAQ

How do I choose the correct Module for my pinion?

The Module (Mod) is a measure of gear tooth size. You must match the Module of your pinion exactly to the Module of your rack. If you are replacing a part, measure the distance between tooth peaks or check your machine's original technical manual.

What is the advantage of a hardened steel pinion?

In rack-and-pinion systems, the pinion usually wears out faster than the rack because its teeth engage more frequently. Hardened steel (induction hardened) ensures that the pinion can withstand thousands of hours of high-speed travel without losing its tooth profile, maintaining accuracy.

Does this pinion require constant lubrication?

Yes. For optimal performance and to prevent premature wear, we recommend a consistent application of high-pressure gear grease or an automatic lubrication system that applies oil to the rack/pinion interface.

Detailed Overview of Industrial Precision Pinion Gear | High-Torque Linear Drive Component

Advanced Engineering & Integration

high precision pinion gear for industrial cnc router rack systems. buy hardened steel pinion gear online india. best price 1.25 module pinion for woodworking machines. precision spur pinion gear technical specifications ahmedabad. durable rack and pinion drive components for metalworking cnc

This CNC Router Accessories is preferred for .
