Industrial Precision Rack & Pinion System | High-Speed Linear Drive

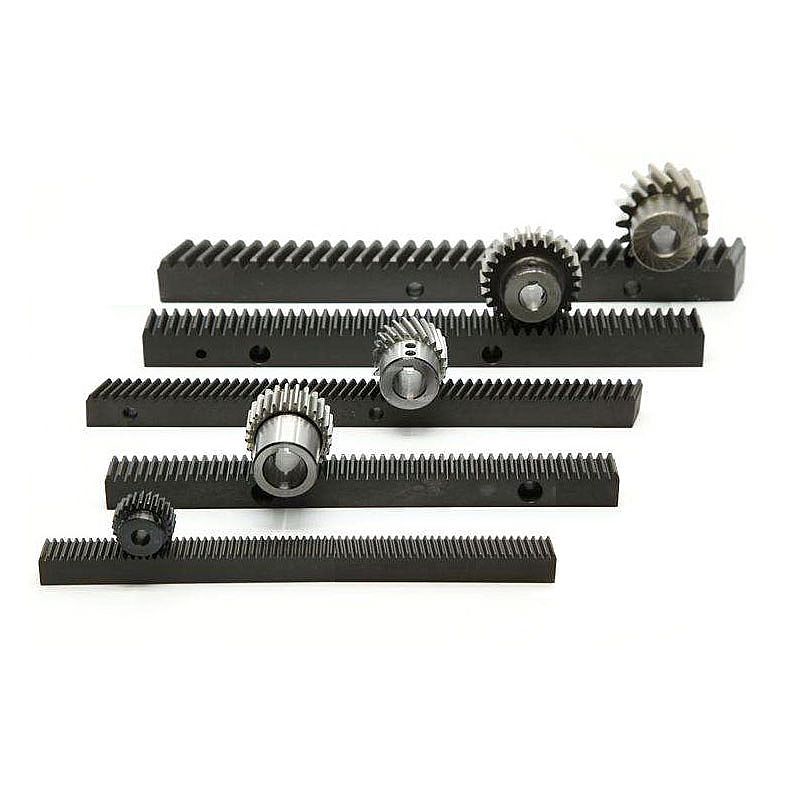

The Industrial Precision Rack & Pinion system is the premier choice for linear motion in large-format CNC routers and automated industrial machinery. Designed to overcome the length limitations of ball screws, this system provides consistent accuracy and rigidity across extended travel distances. Manufactured from high-grade alloy steel, the racks undergo specialized induction hardening and precision grinding to ensure a smooth, low-noise interface with the pinion gear. This setup allows for rapid acceleration and high-speed traversing while maintaining the exceptional torque transmission necessary for heavy-duty milling, stone cutting, and metal engraving. Available in both straight and helical tooth profiles (Modules 1.25, 1.5, and 2.0), our rack and pinion systems are engineered to minimize backlash and maximize operational efficiency in demanding dynamic environments.
- Efficient motion conversion optimized for long-travel CNC axes
- Hardened and ground teeth for superior wear resistance and accuracy
- High-speed positioning capability with rapid acceleration rates
- Available in helical profiles for reduced noise and smoother engagement
- Durable alloy steel construction designed for industrial heavy-duty use
- Modular design for easy installation and seamless rail joining
Comparative Technical Spindle Motor Configurations Matrix
Use the structural data catalog matrix below to evaluate power outputs, maximum RPM, operating voltages, and cooling styles across standard TriQuench CNC spindle models.
| Spindle Capacity | Operating Speed | Operating Voltage | Cooling System |
|---|---|---|---|
| 12.0 kW | 18,000 RPM | 380 V | Water-Cooled |
| 0.8 kW | 24,000 RPM | 220 V | Air-Cooled (Long Shaft) |
| 3.7 kW | 40,000 RPM | 380 V | Water-Cooled ISO20 |
| 9.0 kW | 18,000 RPM | 380 V | Air-Cooled |
Technical Specifications
| Technical Parameter | Engineering Specification Value |
|---|---|
| MODEL NUMBER | Precision Rack & Pinion Series |
| MATERIAL | Hardened High-Grade Steel Alloy (C45 / 20CrMnTi) |
| AVAILABLE MODULES | 1.25 Mod / 1.5 Mod / 2.0 Mod |
| TOOTH TYPE | Helical (Right Hand/Left Hand) or Straight Spur |
| MECHANICAL | precisionGrade: Industrial Grade (DIN 6/7/8) | hardness: HRC 50-55 (Induction Hardened) | standardLength: 1000mm per section (Connectable) |
Industrial Applications
| Usage Scenario | Target Industry |
|---|---|
| Large-Format CNC Router X and Y Axes | Machine Tool Manufacturing and CNC Fabrication |
| Industrial Plasma and Laser Cutting Gantry Systems | Industrial Automation and Robotics |
| Heavy-Duty Marble and Stone Routing Machines | Signage and Large-Format Manufacturing |
| Industrial Robotics and Pick-and-Place Automation | Stone and Architectural Masonry |
| Automated Packaging and Woodworking Centers | Aerospace and Automotive Production |
| High-Speed Material Handling and Conveyor Tracks | General Engineering |
Technical FAQ & Operational Guide
Why choose Helical Rack over Straight Rack?
Helical racks feature teeth cut at an angle, allowing for multiple teeth to engage simultaneously. This results in much smoother motion, higher load capacity, and significantly lower noise levels at high speeds compared to straight spur racks.
Can I connect multiple 1-meter rack sections together?
Yes. Our racks are designed with end-machining that allows them to be joined seamlessly. We recommend using a 'companion rack' section during installation to ensure the tooth pitch remains perfectly consistent across the joint.
How do I maintain the rack and pinion system?
Regular lubrication is critical to prevent metal-on-metal wear. We recommend a high-pressure gear grease or an automated felt-gear lubrication system that consistently applies oil to the rack surface during operation.
