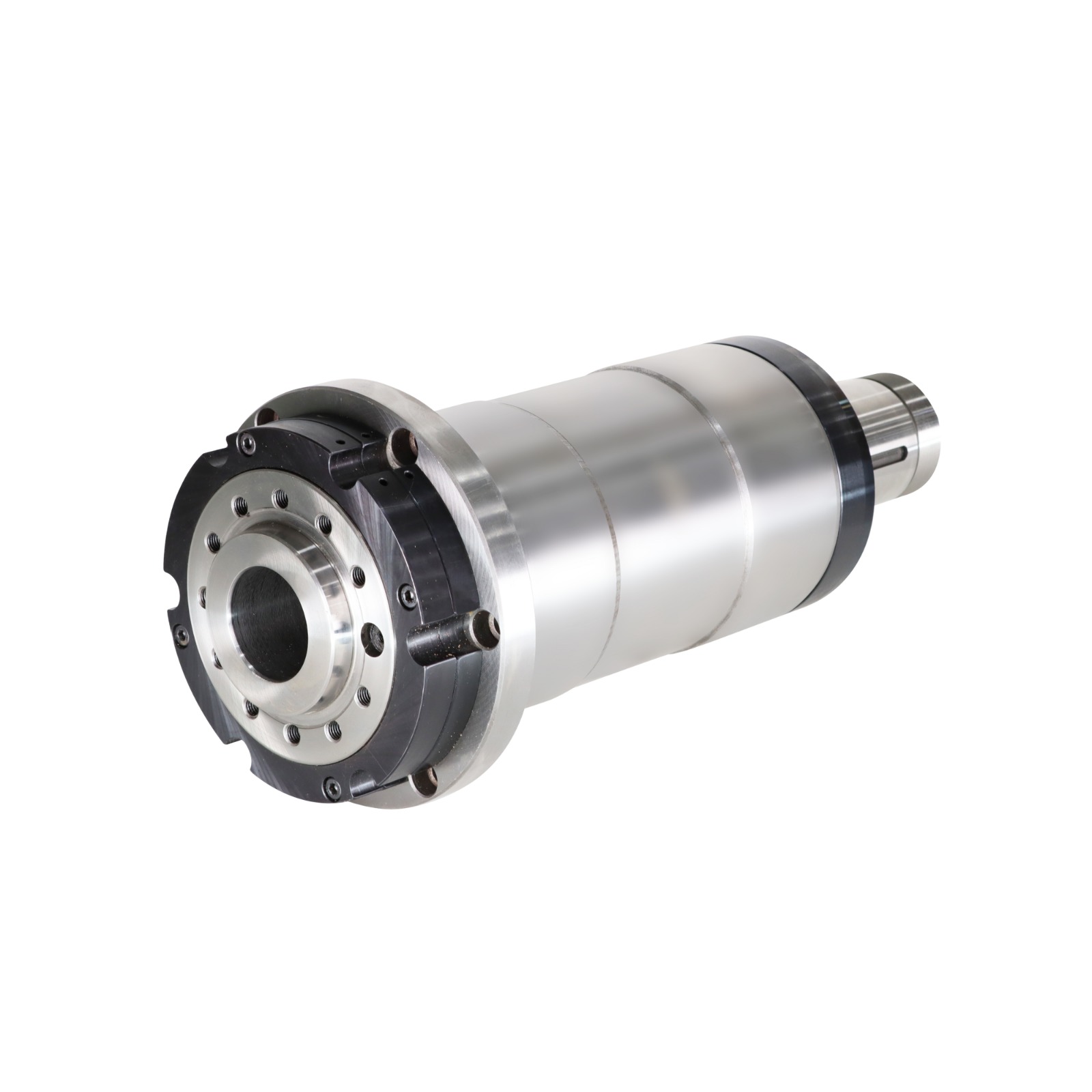

A2-5 LATHE SPINDLE (STD)
The A2-5 Lathe Spindle (STD) is designed for CNC turning and lathe machines, delivering high precision and performance for machining applications.
- CNC Turning Machine
- CNC Lathe Machine
Specifications
- Model numberMTLSA2-5 DIA 170 X 320, BORE DIA-42MM
- Nose TaperA2-5
- Flange Diameter235 Dia
- Total Length533 mm
- Locating Diameter170 h6 x 310 mm
- Bore Diameter42mm
- Speed5000 RPM
- LubricationGreased Packed
- Front Bearing7016 P4
- Rear Bearing7014 P4
- Bearings4 + 2
Applications
- CNC Turning Machine
- CNC Lathe Machine
