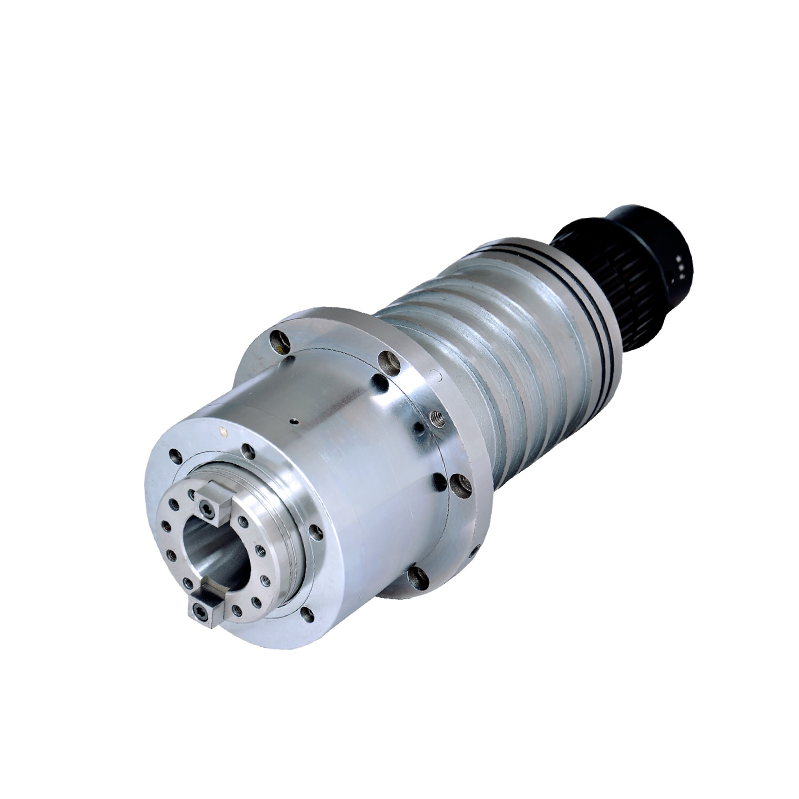

BT50 190 MM MILLING SPINDLE
The BT50 190MM Milling Spindle is designed for high-performance vertical milling applications. It offers precision and durability, making it ideal for heavy-duty operations. The spindle features a robust design, enhanced bearings, and a stable operational speed for maximum efficiency.
- Engineered for Vertical Milling Machines
- BT50 Nose Taper for secure tool attachment
- Long total length of 650 mm for deep milling operations
- Speed capability of 6000 RPM for efficient milling
- Greased-packed lubrication for minimal maintenance
- Heavy-duty bearing configuration (4 + 2) for stability and reliability
Specifications
- Model NumberMTMSBT50190
- Nose TaperBT-50
- Locating Diameter190H6
- Total Length650 mm
- Flange Diameter250 mm
- Speed6000 RPM
- LubricationGreased Packed
- Front Bearing7020 P4
- Rear Bearing7016 P4
- Bearings4 + 2
Applications
- Vertical Milling Machine
