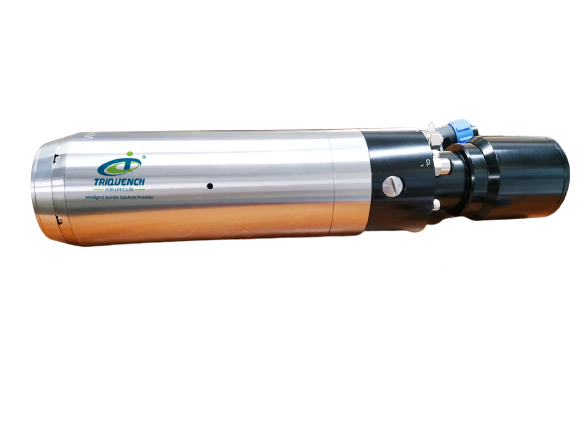

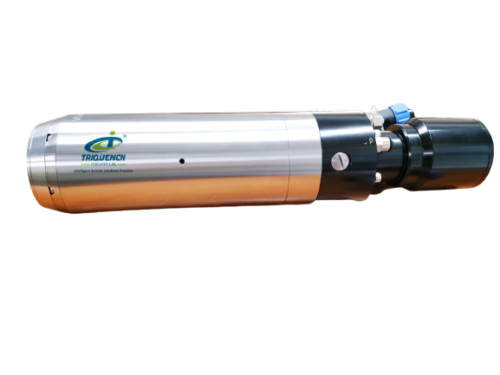

CNC ATC Spindle Motor 2.2 kW,30000 RPM,220 V,ISO20
- Suitable for machining aluminum, plastic, and light alloys
- Greater Stability even at Higher RPMs (Even at 60000 rpm)
- Tool Changing facility
- Cycle time reduction
Categories: Spindle Motor ATC, Water Cooled
Tags: Air Cooled Round body, Air Cooled Spindle Motor, Air Cooled Square Body, atc spindle collet, ATC Spindle Motor, Ceramic Ball Bearing, chiller unit, CNC Jewellery Making Machine, cnc spindle motor, er nut a type, er nut m type, er nut um type, ER-Collet, ER-Nut, MTC Spindle Motor, Pull Stud Gripper, Spindle Bearing, Steel Ball Bearing, Water Cooled Spindle Motor
- Specification
- Application
- Advantages
- Reviews (0)
Specification
Specification
Model number | O22400R220M1 |
Speed | 30000 RPM |
Voltage | 220V |
Current | 8.5 A |
Frequency | 1000Hz |
Torque | 0.87 N.m |
Pole | 4 |
Tool Holding | ISO20 |
Weight | 9 Kg |
Application
Application
- Machine tool- CNC Milling Machine
- CNC Die & Molding Machine
- CNC Pattern Making Machine
- CNC Glass Engraving Machine
Advantages
Advantages
- STIFFNESS AND PRECISION
- Set of 4 ceramic ball bearings on the spindle gives maximum strength and stability
- ENHANCED LIFESPAN
- Variable bearings pre-load system with springs to allow the spindle to machine without overheating
- CONFIGURABILITY
- Different configurations give flexibility towards selections as per machinary needed
