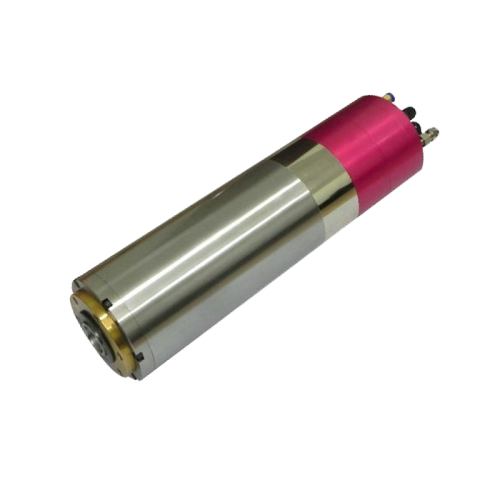

CNC ATC Spindle Motor 5.5 kW,18000 RPM,380 V,BT30
- Suitable for machining aluminium, plastic and light alloys
- Greater Stability even at Higher RPMs (Even at 60000 rpm)
- Tool Changing facility
- Cycle time reduction
Categories: Spindle Motor ATC, Water Cooled
Tags: Air Cooled Round body, Air Cooled Spindle Motor, Air Cooled Square Body, atc spindle collet, ATC Spindle Motor, Ceramic Ball Bearing, er nut a type, er nut m type, er nut um type, ER-Collet, ER-Nut, MTC Spindle Motor, Single Phase VFD, Spindle Bearing, Steel Ball Bearing, Three Phase VFD, vfd, VFD C200, VFD MS300, Water Cooled Spindle Motor
- Specification
- Application
- Advantages
- Reviews (0)
Specification
Specification
Model number | BT30180R380M1 |
Speed | 18000 RPM |
Voltage | 380V |
Current | 20 A |
Frequency | 600Hz |
Torque | 0.87 N.m |
Pole | 4 |
Tool Holding | BT30 |
Weight | 24 Kg |
Application
Application
- Machine Tool- CNC Milling Machine
- CNC Die & Molding Machine
- CNC Pattern Making Machine
- CNC Stone Carving Machine
Advantages
Advantages
- STIFFNESS AND PRECISION
- Set of 4 ceramic ball bearings on the spindle gives maximum strength and stability
- ENHANCED LIFESPAN
- Variable bearings pre-load system with springs to allow the spindle to machine without overheating
- CONFIGURABILITY
- Different configurations give flexibility towards selections as per machinary needed”
