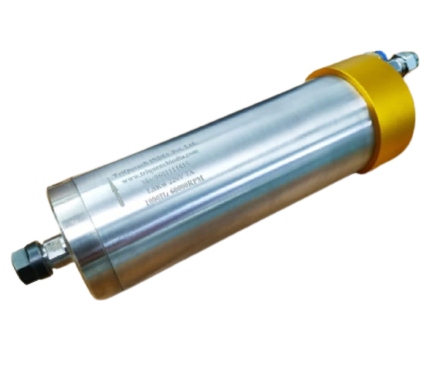

CNC Spindle Motor 1.8kW,220V,60000RPM Water Cooled
- Suitable for CNC PCB Drilling Machine / CNC Jewellery Making Machine
- Efficient cooling and low noise level
- High-Quality Ceramic Bearings
- Accuracy is less than 3 Micron
- CNC Spindle Motor 1.8KW
Category: Uncategorized
Tags: Air Cooled Round body, Air Cooled Spindle Motor, Air Cooled Square Body, atc spindle collet, ATC Spindle Motor, Ceramic Ball Bearing, chiller unit, CNC Jewellery Making Machine, CNC PCB Drilling Machine, cnc spindle motor, electric connector, er nut a type, er nut m type, er nut um type, ER-Collet, ER-Nut, lathe spindle, milling spindle, MTC Spindle Motor, Single Phase VFD, Spindle Bearing, spindle clamp, spindle connector, Steel Ball Bearing, Three Phase VFD, Tool Holder, vfd, VFD C200, VFD MS300, Water Cooled Spindle Motor, wood carving spindle motor
- Specification
- Application
- Reviews (0)
Specification
Specification
Model number | W18600R220M1 |
Speed | 60000 RPM |
Voltage | 220V |
Current | 7.5 A |
Frequency | 1000 Hz |
Torque | 3.18 N.m |
Pole | 2 |
Joint of nose | ER11(1mm to 7mm) |
Bearing Type | 2 X 7003 P4 2 X 7003 P4 |
Weight | 4.5Kg |
Application
Application
- PCB Drilling
- Jewellery Making
