ATC spindle for CNC router and machining centres
A CNC ATC spindle saves time on jobs that use several cutters: the controller drops one tool holder in the rack, picks the next and carries on. An ATC spindle for CNC router use is the standard upgrade for furniture, panel and mould shops. TriQuench India's range runs from high speed ATC spindle models (1.8 kW at 60,000 RPM and 2.2 kW ISO20) to the 5.5 kW and 9 kW BT30 spindles and a 7.5 kW BT40 ATC spindle for heavier milling.
ISO20, BT30 and BT40 ATC spindle options
The taper decides which tool holders and tool racks you use. An ISO20 ATC spindle suits small, fast spindles for engraving and light routing. A BT30 ATC spindle is the common choice for 5.5 kW to 9 kW router spindles. A BT40 ATC spindle is heavier and stiffer, for 7.5 kW and larger spindles that take bigger cutters at lower speeds.
High speed ATC spindle models
High speed ATC spindles trade torque for RPM. The 1.8 kW 60,000 RPM and the 3.7 kW 40,000 RPM water cooled ISO20 spindles suit small cutters, aluminium engraving and fine detail work. The specification table below lists every ATC model with its power, speed, voltage and taper.
9 kW ATC spindle and 7.5 kW ATC spindle for heavy work
The 9 kW ATC spindle (24,000 RPM, BT30, 380V) is the workhorse for large nesting routers. The 7.5 kW ATC spindle with a BT40 taper runs at 11,000 RPM for high torque on larger tools. Both need a three-phase VFD rated at or above the spindle power and a dry, regulated air supply for the drawbar.
ATC spindle price and supply in India
ATC spindle price depends on power, taper, speed and cooling. As an ATC spindle manufacturer and supplier in India, we can quote the spindle with tool holders, tool forks, VFD and connectors. Send your machine details for an exact quote.
ATC Spindle specifications
Ratings as listed on each product page. Open a model for full specifications or ask for a quote.
| Model | Power | Speed (RPM) | Voltage | Cooling | Collet / Taper |
|---|---|---|---|---|---|

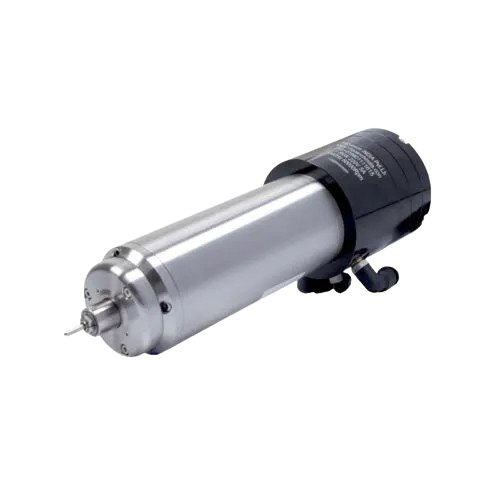

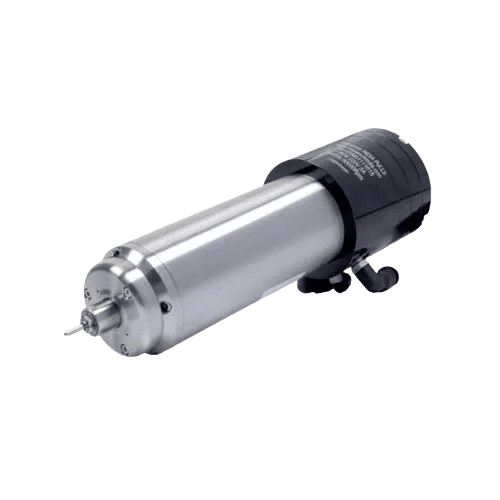

| CNC ATC Spindle Motor 1.8 kW, 60000 RPM, 220V High Speed | 1.8 kW | 60000 | 220V | ā | ā |
| CNC ATC Spindle Motor 7.5 kW, 11000 RPM, 380V BT40 High Torque | 7.5 kW | 11000 | 380V | ā | BT40 |

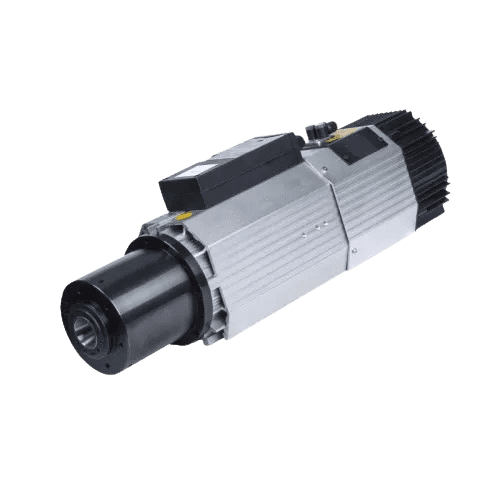

| CNC ATC Spindle Motor 9 kW, 24000 RPM, 380V BT30 High Power | 9 kW | 24000 | 380V | ā | BT30 |
| CNC ATC Spindle Motor 5.5 kW, 18000 RPM, 380V BT30 High Precision | 5.5 kW | 18000 | 380V | ā | BT30 |
| CNC ATC Spindle Motor 2.2 kW, 40000 RPM, 220V ISO20 High Speed | 2.2 kW | 40000 | 220V | ā | ISO20 |
| CNC Spindle Motor 3.7 kW, 40000 RPM, 380V Water Cooled ISO20 | 3.7 kW | 40000 | 380V | Water cooled | ISO20 |
| CNC ATC Spindle Motor 3.7 kW, 40000 RPM, 380V Water Cooled ISO20 | 3.7 kW | 40000 | 380V | Water cooled | ISO20 |
ATC Spindle: frequently asked questions
What is an ATC spindle and how does it work?
An ATC spindle has a spring-loaded drawbar inside the shaft that pulls the tool holder's pull stud and locks it in the taper. When the controller calls a tool change, compressed air pushes a piston that releases the drawbar, the old holder is dropped into the tool rack, and the new one is clamped in a few seconds.
The spindle needs clean, dry compressed air at the pressure on its data sheet, a tool-release solenoid valve controlled by the CNC, and tool holders with the matching taper and pull stud.
ATC vs MTC spindle: which should I buy?
Buy an MTC spindle if most jobs use one or two cutters and you want the lowest cost and simplest setup. Buy an ATC spindle if jobs use several tools, you run production batches, or labour time matters; it costs more and needs compressed air and a tool rack, but tool changes take seconds instead of minutes.
Our ATC vs MTC spindle guide compares cost, setup, maintenance and typical machines in one table.
What is the difference between an ATC air cooled spindle and an ATC water cooled spindle?
An ATC air cooled spindle uses a fan and needs no coolant lines, which suits wood routers and dusty shops. An ATC water cooled spindle uses a coolant jacket and chiller, runs quieter and holds temperature better in long shifts and metal cutting. The tool change mechanism is the same in both.
Related products, guides and services
Get a quote for ATC Spindle
Tell us the model, size or the machine it is for. Our Ahmedabad team replies with specifications, availability and price.
Pan-India 24ā48h express dispatch ā¢ P4 ceramic bearings ā¢ ISO 1940 Grade G0.4 dynamic balancing
Automatic Tool Change (ATC) Spindles Technical Specification & Price Comparison Matrix
Comprehensive technical parameters, spindle speeds, tool-holding tapers, and approximate price ranges in India across genuine TriQuench models.
| Model / Configuration | Power (kW / HP) | Rated Speed (RPM) | Cooling Method | Collet / Taper | Voltage Rating | Price Range (India) |
|---|---|---|---|---|---|---|
| TQ-ATC-3.2K (ISO20 / BT20) | 3.2 kW (4.3 HP) | 24,000 ā 36,000 RPM | Air Blower / Water Loop | ISO20 Tool Holder | 220V / 380V 3-Ph | ā¹95,000 ā ā¹1,25,000 |
| TQ-ATC-5.5K (ISO30 Standard) | 5.5 kW (7.5 HP) | 18,000 ā 24,000 RPM | Electric Blower Fan | ISO30 Tool Holder (ER32) | 380V 3-Phase | ā¹1,20,000 ā ā¹1,55,000 |
| TQ-ATC-7.5K (BT30 Heavy) | 7.5 kW (10.0 HP) | 12,000 ā 18,000 RPM | Dual Liquid Jacket Loop | BT30 / HSK-F63 | 380V 3-Phase | ā¹1,45,000 ā ā¹1,85,000 |
| TQ-ATC-9.0K (Production Flagship) | 9.0 kW (12.0 HP) | 12,000 ā 24,000 RPM | Electric Blower / Water Chiller | ISO30 / BT30 Taper | 380V 3-Phase | ā¹1,65,000 ā ā¹2,20,000 |
| TQ-ATC-12K (HSK High-Torque) | 12.0 kW (16.0 HP) | 10,000 ā 24,000 RPM | Refrigerated Liquid Chiller | HSK-63F / HSK-A63 | 380V 3-Phase | ā¹2,10,000 ā ā¹2,90,000 |
How to Choose the Right Automatic Tool Change (ATC) Spindles: 5-Step Engineering Guide
Step-by-step sizing and technical selection criteria recommended by machine design engineers for optimal cutting speed, rigidity, and lifespan.
Match Tool Interface Standard
Choose ISO20 for lightweight high-RPM routing (>30,000 RPM), ISO30 for general CNC woodworking and nested cabinetry, or BT30 / HSK63F for heavy metal and composite milling.
Calculate Pneumatic Air Pressure Capacity
ATC spindles require clean, dry compressed air at 6.0 to 8.0 bar pressure to actuate the internal drawbar cylinder and air-purge labyrinth seals.
Select Cooling Method Based on Duty Cycle
Air-cooled ATC spindles simplify gantry wiring in woodworking shops; liquid-cooled ATC units provide thermal consistency for non-ferrous aluminum mold machining.
Size Vector VFD & Encoder Feedback
Choose a VFD supporting oriented spindle stops (M19 orientation) if your tool carousel requires fixed spindle angular alignment during pickup.
Verify Drawbar Retention Force & Bearings
Ensure the drawbar delivers >2,500 N retention force to prevent tool pullout under heavy cutting loads, supported by quad P4 ceramic hybrid bearings.
Air Cooled vs. Water Cooled Automatic Tool Change (ATC) Spindles: Technical & Operational Comparison
Evaluate heat rejection methods, acoustic limits, maintenance burdens, and workshop duty cycles before finalizing machine installation.
| Technical Comparison Factor | Air Cooled Configuration | Water / Liquid Cooled Configuration |
|---|---|---|
| Cooling Medium | Integrated electric blower fan forcing airflow across aluminum fins | Closed-loop liquid chiller circulating through internal stator jacket |
| Ambient Temperature Handling | Dependent on workshop temperature; best maintained below 38Ā°C | Maintains exact 20Ā°Cā24Ā°C temperature regardless of ambient room heat |
| Operating Noise Level | 74 dB ā 82 dB (electric blower + high-speed cutter windage) | < 64 dB (fluid loop absorbs high-frequency acoustic harmonics) |
| Duty Cycle Capability | Continuous 8 to 12 hour production shifts with periodic cooling breaks | 24/7 continuous industrial production with zero thermal spindle growth |
| Maintenance & Plumbing | Air filter cleaning and blower fan inspection every 500 hours | Coolant condition checks, chiller water changes, and hose inspection |
| Best Machining Applications | Nested base cabinetry, door manufacturing, acrylic, and sign routing | Aerospace aluminum plates, stone carving, and automotive mold cavities |
Frequently Asked Questions ā Automatic Tool Change (ATC) Spindles
Answers to real user queries on prices in India, field diagnostics, repair procedures, VFD compatibility, and bearing maintenance.
What is the price of an ATC spindle motor in India?
In India, ATC spindle motors range from ā¹95,000 to ā¹1,25,000 for 3.2 kW ISO20 models; ā¹1,20,000 to ā¹1,55,000 for 5.5 kW ISO30 models; and ā¹1,65,000 to ā¹2,50,000+ for heavy-duty 9.0 kW to 12 kW BT30 / HSK63F spindles.
What air pressure is required to operate an ATC spindle drawbar?
ATC spindle pneumatic drawbars require clean, dry, oil-free compressed air regulated to 6.0 to 8.0 bar (85ā115 PSI) with a dedicated 5-micron air filter and coalescing moisture separator.
What is the difference between ISO30 and BT30 tool holders?
ISO30 tool holders feature a flange designed for high-speed routing up to 24,000 RPM with pull-stud retention, while BT30 tool holders have a thicker V-groove flange designed for heavy-duty milling and rigid orientation keys.
How long does an automatic tool change take on an ATC spindle?
The mechanical tool unclamping and clamping cycle takes approximately 1.5 to 3.0 seconds, allowing complete multi-tool program execution without stopping machine productivity.
How to repair an ATC spindle with weak drawbar clamping or tool sticking?
Drawbar issues are repaired by disassembling the cylinder, replacing fatigued Belleville disc spring washers, renewing gripper petal fingers, polishing the taper socket, and verifying retention force with a digital pull-force gauge.
Can an existing manual CNC router be upgraded to an ATC spindle?
Yes. Upgrading requires installing an ATC spindle, adding an air compressor with pneumatic solenoid valves, mounting a linear or carousel tool magazine, and configuring CNC controller macro scripts.
Why is positive air purge sealing important on ATC spindles?
Air purge maintains positive pressure inside the bearing chamber (0.5ā1.0 bar), creating an air barrier that prevents fine dust, chips, and coolant mist from contaminating the ceramic bearings during high-speed rotation.
Which VFD is best for an automatic tool changer spindle?
Delta VFD-MS300 or C2000 series with closed-loop vector control and position orientation card (PG card) allows precise spindle positioning for carousel tool pick-up and dynamic braking.
