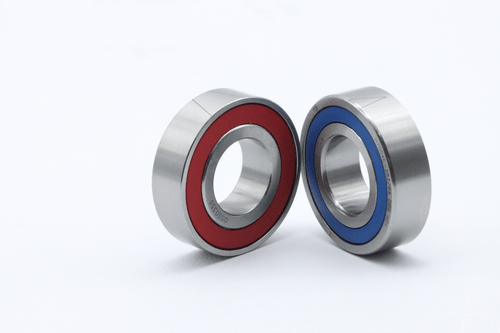

Advanced Engineering Analysis: Angular Contact Ceramic Ball Bearing H7004C-2RZ HQ1
Brand: TriQuench India | Model: H7004C-2RZ HQ1 P4 | Classification: Spindle Bearing > Angular Contact Ceramic Ball Bearing > angular-contact-ceramic-ball-bearing
The Angular Contact Ceramic Ball Bearing H7004C-2RZ HQ1 represents the pinnacle of high-speed mechanical rotation technology, meticulously engineered for demanding CNC spindle applications that dictate extreme positional precision and minimal thermal friction. Utilizing premium silicon nitride (Si3N4) ceramic balls paired with high-grade steel raceways, this hybrid ceramic bearing yields substantial advantages over standard steel elements, including lower centripetal forces, drastically reduced heat generation, and superior wear resistance under rigorous operational cycles. Featuring an optimized 15-degree contact angle (C profile), it facilitates fluid management of simultaneous radial and axial vector forces, preserving near-zero runout tolerances at an extreme grease-lubricated limiting speed of 61,900 r/min. To extend service life within harsh woodworking router or high-velocity metal milling environments, the assembly is outfitted with double non-contact rubber seals (2RZ) that retain premium high-speed synthetic grease while barring entry to fine dust, airborne particulates, and liquid coolant spray. The HQ1 designation guarantees precision-matched engineering balancing, making this bearing the definitive solution for high-frequency motorized spindle overhauls requiring long-term operational consistency.
Technical Core: Rated for industrial-grade output, maximum rotational velocity of high-performance, operating voltage of 220V/380V, with Water/Air Cooled thermal stabilization.
Key Engineering Features: Hybrid ceramic design using silicon nitride balls for high-speed performance up to 61,900 r/min; Substantially reduced thermal expansion and lower operational friction compared to all-steel bearings; Premium double rubber seals (2RZ) provide contamination protection while preserving high RPMs; Optimized 15-degree angular contact profile handles simultaneous radial and axial loads efficiently; High-grade carbon-chromium steel rings deliver excellent structural rigidity and stiffness; Ideal for high-frequency CNC spindles, precision automated robotics, and machining centers.
Key Machine Applications: High-Speed High-Frequency CNC Router Spindle Shaft Support Assembly, Vertical Machining Center (VMC) and High-Velocity Milling Axial Guidance Systems, Precision Robotics, Aerospace Actuators, and High-Performance Motion Control Gantry Rigs, Automated High-RPM Internal Grinding Machine Shaft Supports, High-Speed Lab Centrifuges and Advanced Industrial Engineering Turbo-Machinery.
Industries Served: CNC Router and Industrial Precision Machine Tool Manufacturing, Woodworking, Cabinetry, and Automated Panel Processing Workshops, High-Accuracy Tooling Manufacturing, Automotive Engineering, and Aerospace Assembly, Precision Electronics, Medical Equipment Engineering, and Advanced Component Testing Houses, Industrial Spindle Repair Services and Spare Parts Distribution Centers.
Manufactured and tested at TriQuench India Ahmedabad engineering facility under ISO 1940 Grade G0.4 dynamic balancing standards. Supervised by directors: Parag Shah and Kaushal Panchal.
