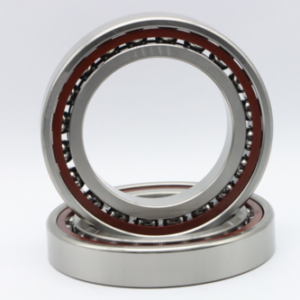

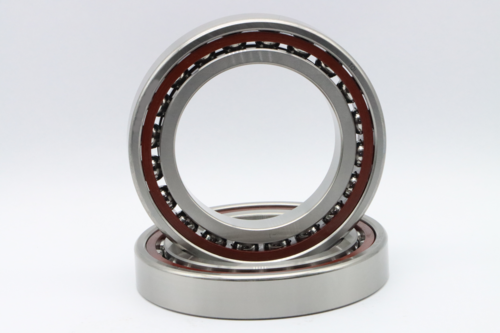

Angular Contact Steel Ball Bearing 7003C-2RZ DBB
The Angular Contact Steel Ball Bearing 7003C-2RZ DBB is an elite mechanical component specifically engineered for high-speed industrial applications demanding absolute concentricity and rigorous axial load tracking. Designed primarily for integration into high-performance CNC spindle shafts, high-frequency milling routers, and heavy-duty electric motors, this bearing features an optimized internal 15-degree contact angle profile. This geometric configuration enables it to support heavy simultaneous radial and axial forces smoothly. Built from premium-grade carbon-chromium bearing steel, it delivers high torsional rigidity and structural endurance, keeping micro-runout to negligible tolerances even at an extreme limiting speed of 61,500 r/min. To maintain operating conditions in harsh woodworking or metal-milling environments, the unit is fitted with light-contact double rubber seals (2RZ). These seals provide reliable retention of synthetic speed grease while creating a durable barrier against ultra-fine dust, metallic chips, and liquid coolant mist. The DBB configuration represents a matched back-to-back arrangement with pre-loaded balancing, which absorbs high-frequency harmonics, minimizes thermal expansion, and ensures quiet operational cycles under full manufacturing workloads.
- Optimized internal contact geometry engineered for high-speed 61,500 r/min operations
- Precision-ground steel ball elements ensure minimal friction and heat generation
- Premium double rubber seals (2RZ) provide contamination protection against fine dust and coolant
- Matched back-to-back structural configuration maximizes radial stability and axial load tracking
- High structural rigidity preserves bearing life and reduces expensive spindle downtime
- Perfect replacement choice for heavy-duty CNC routing and industrial milling spindles
Comparative Technical Spindle Motor Configurations Matrix
Use the structural data catalog matrix below to evaluate power outputs, maximum RPM, operating voltages, and cooling styles across standard TriQuench CNC spindle models.
| Spindle Capacity | Operating Speed | Operating Voltage | Cooling System |
|---|---|---|---|
| 12.0 kW | 18,000 RPM | 380 V | Water-Cooled |
| 0.8 kW | 24,000 RPM | 220 V | Air-Cooled (Long Shaft) |
| 3.7 kW | 40,000 RPM | 380 V | Water-Cooled ISO20 |
| 9.0 kW | 18,000 RPM | 380 V | Air-Cooled |
Technical Specifications
| Technical Parameter | Engineering Specification Value |
|---|---|
| MODEL NUMBER | 7003C-2RZ DBB |
| BEARING TYPE | Angular Contact Steel Ball Bearing |
| PRECISION CLASS | P4 High-Precision Grade |
| CONTACT ANGLE | 15 Degrees (C Profile) |
| DIMENSIONS | insideDiameter: 17 mm | outsideDiameter: 35 mm | width: 10 mm |
| LOAD RATINGS | basicDynamicLoad: 5.2 KN | basicStaticLoad: 2.5 KN |
| MECHANICAL | limitingSpeedGrease: 61,500 r/min | sealingType: Double Rubber Sealed (2RZ Light Contact) | arrangement: DBB Matched Assembly Group | weight: 2.5 kg |
Industrial Applications
| Usage Scenario | Target Industry |
|---|---|
| High-Speed High-Frequency CNC Router Spindle Shaft Support Assembly | CNC Router and Industrial Precision Machine Tool Manufacturing |
| Vertical Machining Center (VMC) and Milling Machine Axial Guidance Systems | Woodworking, Cabinetry, and Automated Panel Processing Workshops |
| Heavy-Duty Industrial AC Spindle Motor Rotating Frameworks | High-Accuracy Automotive Component Tooling and Milling Mills |
| Precision Automotive, Aerospace, and Gantry Motion Control Rigs | Aerospace Defense Engineering and Precision Robotic Kinematics Systems |
| High-RPM Automated Indexing Turntables and Rotary Mechanism Mounts | Industrial Spindle Repair Services and Spare Parts Distribution Centers |
Technical FAQ & Operational Guide
What does the 2RZ suffix represent in this spindle bearing configuration?
The 2RZ suffix designates that the bearing is equipped with light-contact rubber seals on both sides. These seals provide a near-hermetic defense against abrasive dust particulates and micro-shavings typical in CNC environments, while offering lower frictional resistance compared to heavy-contact rubber seals, thereby enabling ultra-high RPM performance up to 61,500 r/min.
Why is the matched DBB configuration preferred for CNC spindle overhauls?
The DBB configuration is a matched set of bearings paired in a back-to-back arrangement. This orientation enhances structural rigidity, allows the system to receive simultaneous radial and axial thrust loads, and counteracts tipping forces or dynamic misalignment spikes, which preserves machining surface finishes.
Does this 7003C bearing require external manual grease injection during installation?
This bearing features high-specification factory pre-lubrication sealed within its synthetic channel chambers. During spindle overhaul, clean assembly environment boundaries must be maintained. Do not wash or flush factory grease out, as it is dynamically portioned to protect the steel rolling surfaces throughout its standard service lifecycle.
