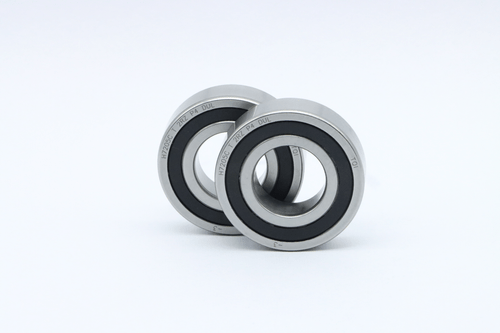

Angular Contact Steel Ball Bearing 7205C-2RZ DBB
The Angular Contact Steel Ball Bearing 7205C-2RZ DBB is engineered for high-speed and high-precision applications. It is ideal for use in CNC spindles and other precision machinery that require enhanced load-carrying capacity and speed.
- High-speed performance with up to 30,000 r/min limiting speed
- Optimized for handling both radial and axial loads
- Compact design suitable for high-precision machinery
- Ideal for use in CNC spindles and industrial equipment
Specifications
- Inside Diameter(mm)25 mm
- Outside Diameter(mm)52 mm
- Width Dimension(mm)15 mm
- Limiting Speed(Grease)r/min30000 r/min
- Basic Load Rating(cr)16.8 KN
- Basic Load Rating(cor)13.1 KN
- Weight Kg0.13 kg
Applications
- CNC Spindles
- Precision machinery
- High-speed industrial applications
Request Quote
Share your requirements, and we’ll provide a tailored quote.
