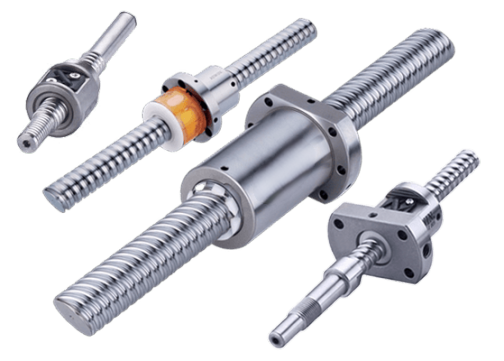

Industrial Precision Ball Screw & Nut Assembly
The Industrial Precision Ball Screw & Nut assembly is a fundamental component for any motion control system requiring high accuracy and efficiency. Unlike standard lead screws, ball screws utilize a recirculating ball bearing system within the nut, which rolls between the matching helical grooves of the screw and nut. This rolling friction is significantly lower than sliding friction, allowing for mechanical efficiencies exceeding 90%. Manufactured from high-strength, induction-hardened steel, these assemblies are engineered to handle high dynamic loads while maintaining surgical positioning repeatability. The precision-ground threads ensure smooth movement and minimal backlash, making them ideal for the rapid direction changes and high-speed traversing required in modern CNC routers, automation systems, and precision machining centers. Available in various diameters and lead angles, these systems can be tailored for either high-resolution positioning or high-speed linear travel.
- High mechanical efficiency (>90%) for reduced motor torque requirements
- Precision-ground helical grooves for minimal backlash and smooth travel
- Induction-hardened high-strength steel for maximum wear resistance
- Internal recirculation system for quiet and stable operation
- Excellent positioning repeatability for complex CNC machining
- Available in high lead angle options for high-speed motion applications
Comparative Technical Spindle Motor Configurations Matrix
Use the structural data catalog matrix below to evaluate power outputs, maximum RPM, operating voltages, and cooling styles across standard TriQuench CNC spindle models.
| Spindle Capacity | Operating Speed | Operating Voltage | Cooling System |
|---|---|---|---|
| 12.0 kW | 18,000 RPM | 380 V | Water-Cooled |
| 0.8 kW | 24,000 RPM | 220 V | Air-Cooled (Long Shaft) |
| 3.7 kW | 40,000 RPM | 380 V | Water-Cooled ISO20 |
| 9.0 kW | 18,000 RPM | 380 V | Air-Cooled |
Technical Specifications
| Technical Parameter | Engineering Specification Value |
|---|---|
| MODEL NUMBER | Precision BSN Series |
| MATERIAL | Induction-Hardened High-Strength Alloy Steel |
| AVAILABLE DIAMETERS | 12mm, 16mm, 20mm, 25mm, 32mm |
| LEAD OPTIONS | 4mm, 5mm, 10mm, 20mm (Custom Available) |
| MECHANICAL | precisionGrade: Industrial Grade (C7/C5 Available) | frictionCoefficient: Ultra-Low Rolling Friction | motionType: Rotary-to-Linear Motion Conversion |
Industrial Applications
| Usage Scenario | Target Industry |
|---|---|
| CNC Router X, Y, and Z Axis Drive Systems | Machine Tool Manufacturing and CNC Fabrication |
| Automated Industrial Pick-and-Place Robotics | Industrial Factory Automation |
| Precision Milling and Lathe Machine Tooling | Aerospace and Automotive Engineering |
| Large-Format 3D Printing and Additive Manufacturing | Precision Electronics Assembly |
| Linear Actuators for Medical and Laboratory Equipment | Medical Device Manufacturing |
| Precision Woodworking and Metal Fabrication Machinery | General Engineering |
Technical FAQ & Operational Guide
What is the main advantage of a ball screw over a traditional lead screw?
The primary advantage is efficiency. Ball screws use recirculating ball bearings to roll, which reduces friction significantly. This means you can move heavier loads more precisely with smaller motors and less heat generation.
How do I choose the right lead angle for my application?
A smaller lead (like 5mm) provides higher resolution and more force, making it ideal for vertical axes (Z-axis) or heavy milling. A larger lead (like 10mm or 20mm) allows for much faster linear speeds, perfect for rapid traversing on X and Y axes.
Does this assembly come with the nut pre-installed on the screw?
Yes, our standard assemblies come with the nut pre-installed. We highly recommend not removing the nut from the screw, as the internal ball bearings can fall out without a specialized sleeve for re-installation.
