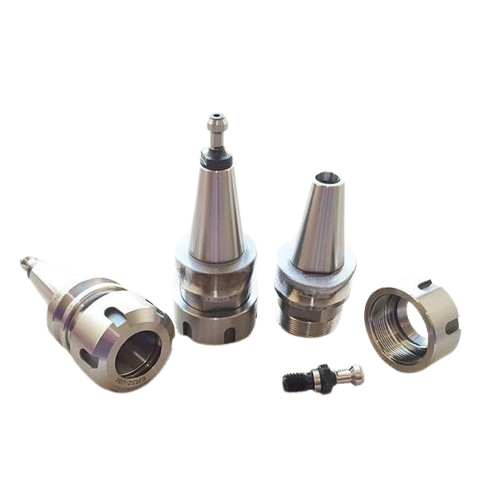

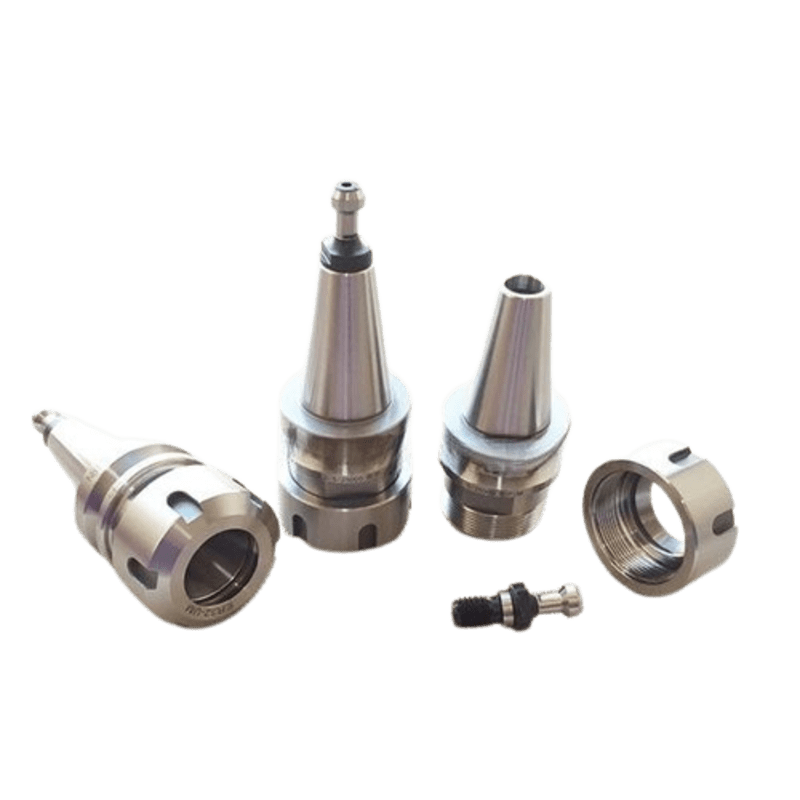

BT30 ER32 Tool Holder | 60mm High-Speed Precision Collet Chuck
The TriQuench NBT30-ER32-60L is a premier industrial tool holder designed for high-performance CNC machining centers. Forged from premium 20CrMnTi alloy steel, this holder undergoes a rigorous carburizing and quenching process to achieve a surface hardness of HRC56-58, ensuring exceptional wear resistance and long-term taper integrity. The holder is precision-balanced to G2.5 at 25,000 RPM, making it the ideal choice for high-speed spindles where vibration suppression is critical for tool life and surface finish quality. Featuring a 7:24 taper accuracy of ≤AT3, it provides maximum surface contact with the spindle, delivering the rigidity required for heavy-duty routing and precision milling. Whether used in high-speed wood carving or complex non-ferrous metal fabrication, this BT30 holder ensures secure tool retention and surgical accuracy.
- High-speed balanced to G2.5 at 25,000 RPM for vibration-free milling
- Forged from 20CrMnTi alloy steel for superior tensile strength
- Hardened to HRC56-58 for maximum durability and taper protection
- Precision-ground taper (≤AT3) for 100% spindle contact
- Integrated 60mm projection length (60L) for optimized tool reach
- Full compatibility with all standard ER32 collet systems
- Corrosion-resistant coating for long-term industrial reliability
Comparative Technical Spindle Motor Configurations Matrix
Use the structural data catalog matrix below to evaluate power outputs, maximum RPM, operating voltages, and cooling styles across standard TriQuench CNC spindle models.
| Spindle Capacity | Operating Speed | Operating Voltage | Cooling System |
|---|---|---|---|
| 12.0 kW | 18,000 RPM | 380 V | Water-Cooled |
| 0.8 kW | 24,000 RPM | 220 V | Air-Cooled (Long Shaft) |
| 3.7 kW | 40,000 RPM | 380 V | Water-Cooled ISO20 |
| 9.0 kW | 18,000 RPM | 380 V | Air-Cooled |
Technical Specifications
| Technical Parameter | Engineering Specification Value |
|---|---|
| MODEL NUMBER | NBT30-ER32-60L |
| TAPER SIZE | BT30 (7:24 Taper) |
| PROJECTION LENGTH | 60 mm |
| MATERIAL GRADE | 20CrMnTi Alloy Steel |
| HARDNESS RATING | HRC56-58 |
| BALANCING GRADE | G2.5 / 25,000 RPM |
| MECHANICAL | taperRunout: ≤ 0.003 mm | nutType: ER32-UM / High Speed Nut | pullstudStandard: BT30 Standard | weight: 0.72 kg (approx) |
Industrial Applications
| Usage Scenario | Target Industry |
|---|---|
| High-Speed CNC Routing and Milling | Precision Machine Tool Manufacturing |
| Automated Tool Change (ATC) Systems | Furniture and Signage Automation |
| Precision 3D Wood Carving and Engraving | Aerospace and Automotive Component Shops |
| Non-Ferrous Metal Machining (Aluminum, Brass) | Mold and Die Engineering |
| Mold and Die Industrial Fabrication | Industrial Robotics and Integration |
| High-Frequency Spindle Tooling Support | General Engineering |
| Industrial Component Prototyping | General Engineering |
Technical FAQ & Operational Guide
What is the benefit of the G2.5 balance rating?
A G2.5 balance rating at 25,000 RPM means the holder has minimal centrifugal imbalance. This reduces spindle vibration, protects spindle bearings from premature wear, and ensures a much smoother surface finish on your workpiece.
Does this tool holder come with the pull stud and nut?
This model includes the high-speed ER32 nut. Pull studs are typically sold separately to ensure you get the exact pull stud angle required by your specific machine spindle.
How should I maintain the taper of my BT30 holder?
Always wipe the taper with a clean, lint-free cloth and a light industrial cleaner before inserting it into the spindle. Any debris on the taper can cause runout and potentially damage the spindle's internal surface.
