BT40 Precision ER Collet Chuck | Heavy-Duty CNC Milling Tool Holder

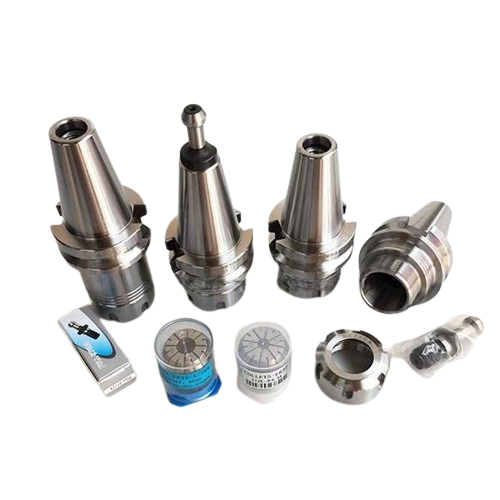

The BT40 Precision ER Tool Holder is a cornerstone of high-performance metalworking, engineered for the rigorous demands of CNC milling centers. Forged from premium 20CrMnTi (Chrome-Manganese-Titanium) alloy steel, this holder offers exceptional core strength combined with a high surface hardness of HRC 56-58. The BT40 taper is precision-ground to meet international standards, ensuring a seamless fit with the spindle and providing the necessary contact area for high-torque transmission and lateral rigidity. Designed for use with ER series collets, this holder minimizes runout and maximizes tool life by providing a uniform clamping force around the tool shank. Whether executing high-speed finishing passes or heavy-duty roughing in tough alloys, the TriQuench BT40 holder delivers the thermal stability and vibration dampening required for superior surface finishes and repeatable dimensional accuracy.
- Forged from 20CrMnTi alloy steel for extreme structural rigidity
- Precision-ground BT40 taper for maximum spindle contact and stability
- Compatible with a wide range of ER collet sizes (ER16 to ER40)
- Superior axial and radial runout accuracy for surgical precision
- High-speed balanced design for vibration-free milling operations
- Carbonitriding heat treatment for enhanced wear and corrosion resistance
Comparative Technical Spindle Motor Configurations Matrix
Use the structural data catalog matrix below to evaluate power outputs, maximum RPM, operating voltages, and cooling styles across standard TriQuench CNC spindle models.
| Spindle Capacity | Operating Speed | Operating Voltage | Cooling System |
|---|---|---|---|
| 12.0 kW | 18,000 RPM | 380 V | Water-Cooled |
| 0.8 kW | 24,000 RPM | 220 V | Air-Cooled (Long Shaft) |
| 3.7 kW | 40,000 RPM | 380 V | Water-Cooled ISO20 |
| 9.0 kW | 18,000 RPM | 380 V | Air-Cooled |
Technical Specifications
| Technical Parameter | Engineering Specification Value |
|---|---|
| MODEL NUMBER | BT40-ER Series |
| TAPER TYPE | BT40 (7:24 Taper) |
| COLLET COMPATIBILITY | ER Series (e.g., ER25, ER32, ER40) |
| MATERIAL | 20CrMnTi High-Strength Alloy |
| MECHANICAL | hardness: HRC 56 - 58 | runoutAccuracy: ≤ 0.005mm | clampingForce: Industrial High-Torque Certified |
Industrial Applications
| Usage Scenario | Target Industry |
|---|---|
| Heavy-Duty CNC Milling and Machining Centers | Machine Tool Manufacturing and Heavy Engineering |
| Precision Metalworking and Die & Mold Fabrication | Automotive Production and Tooling |
| High-Torque Drilling and Tapping Operations | Aerospace Fabrication and Component Machining |
| Automotive and Aerospace Component Machining | Precision Tool and Die Workshops |
| Large-Scale Industrial Parts Manufacturing | Industrial Factory Automation |
| High-Speed Spindle Applications requiring Thermal Stability | General Engineering |
Technical FAQ & Operational Guide
What is the benefit of the BT40 taper over other standards?
BT40 is a symmetrical taper design which provides better balance and stability at higher speeds compared to asymmetrical designs. It is the industrial standard for Japanese and many European CNC milling machines due to its reliability in heavy-duty metalworking.
Does this holder include the pull stud?
Standard tool holders are supplied without the pull stud (retention knob) to allow you to match the specific pull stud requirement of your machine's drawbar system. We offer compatible pull studs as a separate accessory.
How do I ensure the longest life for my BT40 tool holder?
Keep the spindle and tool holder taper clean and lightly oiled to prevent oxidation. Always use a torque wrench to tighten the collet nut to the recommended specifications to avoid over-stressing the holder or the collet.
