BT40 Tool Holder ER40-100

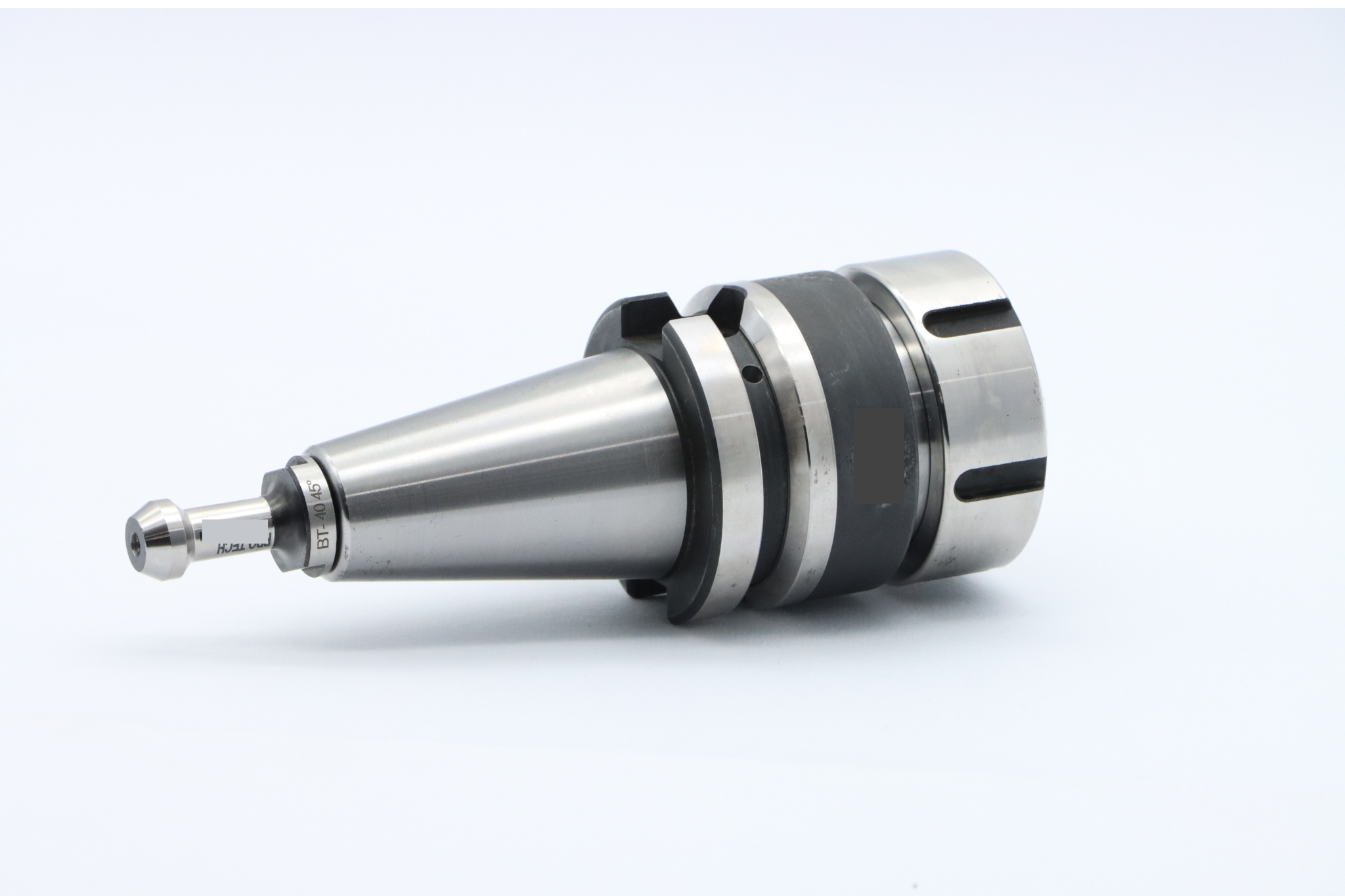

The BT40 Tool Holder ER40-100 is engineered for high-precision applications in CNC machining. Compatible with ER40 collets, it ensures secure tool clamping for various machining tasks and offers enhanced stability and durability.
| Technical Parameter | Specification Value |
|---|---|
| D (SIZE) | 40 mm |
| D1 (SIZE) | 63 mm |
| L1 (SIZE) | 100 mm |
| L (SIZE) | 165.4 mm |
| SUITABLE COLLET | ER 40 |
| SUITABLE SPANNER | ER40 UM-BS |
| WEIGHT(KG) | 2.05 |
Comparative Technical Spindle Motor Configurations Matrix
Use the structural data catalog matrix below to evaluate power outputs, maximum RPM, operating voltages, and cooling styles across standard TriQuench CNC spindle models.
| Spindle Capacity | Operating Speed | Operating Voltage | Cooling System |
|---|---|---|---|
| 12.0 kW | 18,000 RPM | 380 V | Water-Cooled |
| 0.8 kW | 24,000 RPM | 220 V | Air-Cooled (Long Shaft) |
| 3.7 kW | 40,000 RPM | 380 V | Water-Cooled ISO20 |
| 9.0 kW | 18,000 RPM | 380 V | Air-Cooled |
Technical Specifications
| Technical Parameter | Engineering Specification Value |
|---|---|
| D (SIZE) | 40 mm |
| D1 (SIZE) | 63 mm |
| L1 (SIZE) | 100 mm |
| L (SIZE) | 165.4 mm |
| SUITABLE COLLET | ER 40 |
| SUITABLE SPANNER | ER40 UM-BS |
| WEIGHT(KG) | 2.05 |
