CNC Spindle Mounting Clamp Bracket

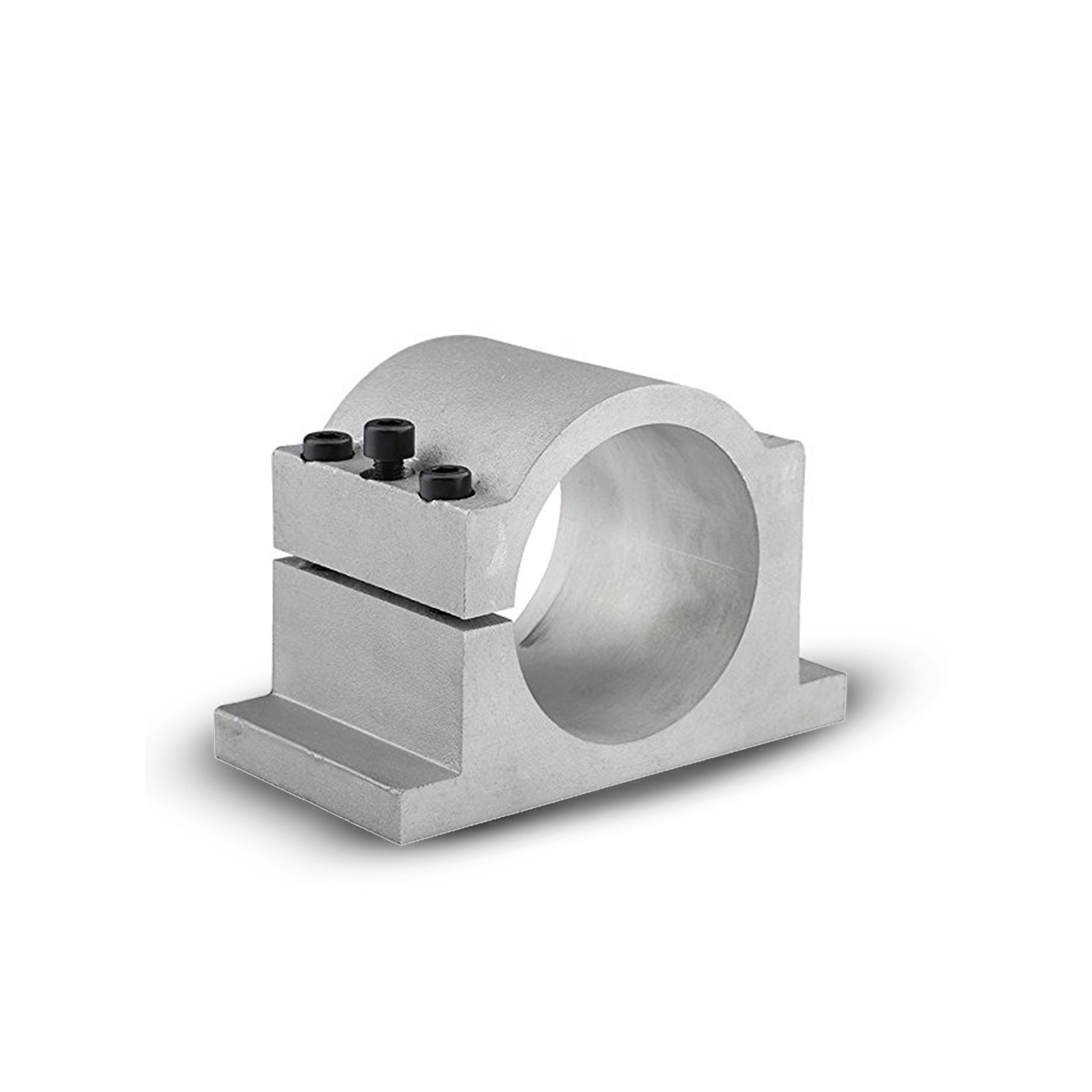

CNC Spindle Mounting Clamp Bracket is a critical engineering component designed to stabilize high-speed spindle motors on your machine’s Z-axis gantry. Manufactured from premium-grade cast aluminum, this bracket undergoes surface sandblasting and precision internal boring to ensure flawless surface conformity and roundness accuracy. A loose or poorly fitting bracket introduces micro-vibrations that degrade cutting surface finish quality and cause premature failure of expensive spindle ceramic bearings. Featuring an easy-to-use split-clamp structure locked down by heavy-duty black socket head cap screws, this bracket ensures a non-slip, uniform radial grip across the entire motor casing. Available in standard industrial sizes to fit air-cooled or water-cooled spindle profiles, its flat, precision-machined mounting base allows for direct, localized alignment onto linear guide blocks.
- Premium cast aluminum build with a sandblasted surface finish for exceptional oxidation resistance
- Precision-bored inner diameter ensuring maximum surface contact area with the spindle housing
- Split-clamp compression engineering with high tensile strength socket head locking screws
- Inherent material elasticity absorbs high-frequency vibrations to preserve spindle bearing life
- Perfectly flat base profile allows for square and seamless mounting onto CNC Z-axis backing plates
- Available in standard multi-diameter configurations to fit common high-speed industrial spindles
Comparative Technical Spindle Motor Configurations Matrix
Use the structural data catalog matrix below to evaluate power outputs, maximum RPM, operating voltages, and cooling styles across standard TriQuench CNC spindle models.
| Spindle Capacity | Operating Speed | Operating Voltage | Cooling System |
|---|---|---|---|
| 12.0 kW | 18,000 RPM | 380 V | Water-Cooled |
| 0.8 kW | 24,000 RPM | 220 V | Air-Cooled (Long Shaft) |
| 3.7 kW | 40,000 RPM | 380 V | Water-Cooled ISO20 |
| 9.0 kW | 18,000 RPM | 380 V | Air-Cooled |
Technical Specifications
| Technical Parameter | Engineering Specification Value |
|---|---|
| MODEL NUMBER | Precision SCB Series |
| MATERIAL | High-Strength Cast Aluminum Alloy |
| SURFACE TREATMENT | Sandblasted / Polished Silver Finish |
| AVAILABLE DIAMETERS | 62mm, 65mm, 80mm, 100mm, 105mm, 125mm |
| LOCKING MECHANISM | 3-Bolt Socket Head Cap Screw Configuration |
| MECHANICAL | alignmentPrecision: High Roundness Conformity Rated | vibrationDampening: Structural Compression-Fit Absorbing | mountingInterface: Standard Flat-Base Pre-Bored Mounting Channel |
Industrial Applications
| Usage Scenario | Target Industry |
|---|---|
| High-Speed Water-Cooled Spindle Motor Rigid Attachment | CNC Router and Machine Tool Manufacturing |
| Air-Cooled Square and Round Spindle Motor Base Stabilization | Woodworking, Cabinetry, and Panel Processing Workshops |
| Z-Axis Slider Gantry Mount Assembly for CNC Wood Routers | Stone Fabrication, Monument Carving, and Granite Masonry |
| Vibration Minimization on Stone Carving and Metal Milling CNC Machinery | Non-Ferrous Metal and Aluminum Profile Component Mills |
| Custom Industrial Automation Multi-Axis Motion Control Rigs | Industrial Spare Parts Distribution and Gantry Maintenance Providers |
Technical FAQ & Operational Guide
How do I choose the correct size clamp bracket for my spindle?
You must measure the exact outer diameter (OD) of your spindle motor housing using a vernier caliper. For example, a standard 2.2kW water-cooled spindle typically features an 80mm OD, which requires an 80mm inner diameter bracket. Do not rely on power wattage alone, as case sizes vary between air-cooled and water-cooled variants.
Why is cast aluminum preferred for spindle brackets over steel placeholders?
Cast aluminum offers a superb strength-to-weight ratio which reduces the total hanging load on your Z-axis motor. Furthermore, aluminum has inherent structural dampening characteristics that help absorb high-frequency harmonics and vibrations produced by 24,000 RPM spindles, protecting your machine's linear bearings.
Can I over-tighten the three clamping screws on the split jaw?
We recommend tightening the socket head screws uniformly in an alternating pattern until the spindle is locked securely against rotation. Over-tightening can strip the internal aluminum threads of the block or slightly compress thin-walled spindle casings, which can bind the internal cooling jackets or bearings.
