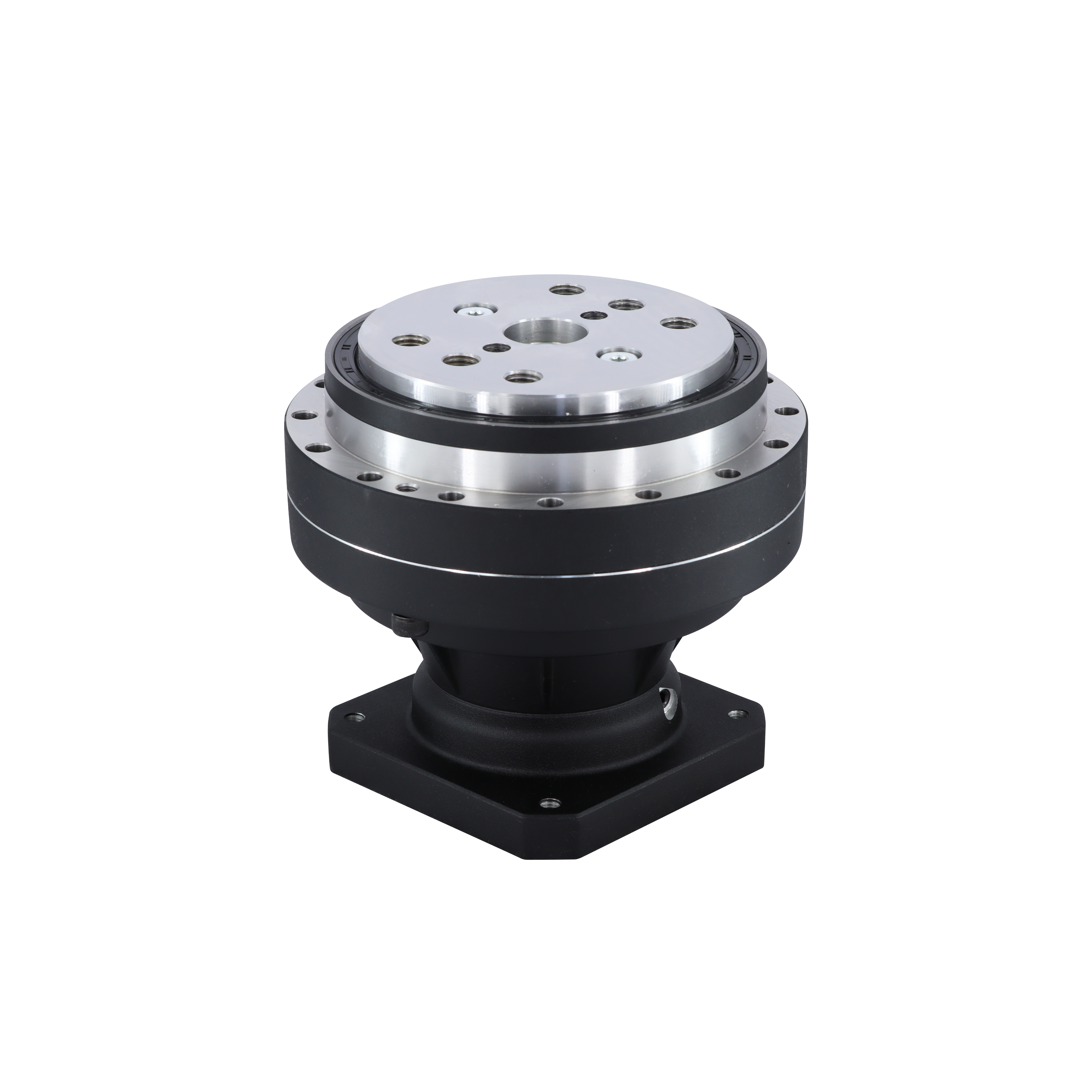

High-Precision Industrial Cycloidal Gearbox
The High-Precision Industrial Cycloidal Gearbox represents the pinnacle of high-torque, zero-backlash mechanical transmission technology. Unlike standard planetary or spur gear arrangements that rely on sliding tooth contact, cycloidal drives utilize rolling components moving across an eccentric cam profile. This rolling mechanism distributes the internal mechanical forces across multiple points of simultaneous contact, providing incredible torsional rigidity and allowing the gearbox to absorb momentary shock loads up to 500% of its standard rating without component failure. Housed in a compact, ruggedized casting with an integrated high-capacity output flange, this reducer delivers maximum radial and axial load support directly to the driven load. The precision-machined internal cycloidal discs and pin arrays hold positioning backlash to near-zero levels, making this series the ultimate solution for industrial 4th/5th axis rotary tables, heavy-duty CNC positioners, high-end automated indexing mechanisms, and multi-axis articulation robotics.
- True cycloidal rolling mechanism design eliminates sliding tooth friction and wear
- Ultra-low positioning backlash profile for surgical repeating accuracy
- High shock load survival capability absorbing spikes up to 500% of nominal torque
- Heavy-duty precision output flange supports high external radial and axial forces
- Symmetric multi-disc balance configuration ensures low vibration and quiet operation
- Completely sealed, lubrication-for-life industrial housing minimizes upkeep overheads
- Flexible motor adapter flange accommodates standard industrial AC servo motors
Comparative Technical Spindle Motor Configurations Matrix
Use the structural data catalog matrix below to evaluate power outputs, maximum RPM, operating voltages, and cooling styles across standard TriQuench CNC spindle models.
| Spindle Capacity | Operating Speed | Operating Voltage | Cooling System |
|---|---|---|---|
| 12.0 kW | 18,000 RPM | 380 V | Water-Cooled |
| 0.8 kW | 24,000 RPM | 220 V | Air-Cooled (Long Shaft) |
| 3.7 kW | 40,000 RPM | 380 V | Water-Cooled ISO20 |
| 9.0 kW | 18,000 RPM | 380 V | Air-Cooled |
Technical Specifications
| Technical Parameter | Engineering Specification Value |
|---|---|
| MODEL SERIES | Precision RV-C Cycloidal Series |
| GEAR MECHANISM | Eccentric Rolling Cycloidal Profile Drive |
| BACKLASH SPECIFICATION | ≤ 1 Arc-Min (Ultra-Precision Grade) |
| AVAILABLE RATIOS | 11:1, 17:1, 29:1, 35:1, 43:1, 59:1, 87:1 (Custom Double Reduction Available) |
| OUTPUT INTERFACE TYPE | Heavy-Duty Pre-Bored Industrial Bolt Flange |
| MECHANICAL | torsionalRigidity: High Torsional Stiffness Graded | efficiencyRating: Mechanical Conversion Efficiency ≥ 92% | inputInterface: Precision Keyway / Collet Servo Motor Adapter Clamp |
Industrial Applications
| Usage Scenario | Target Industry |
|---|---|
| CNC Router 4th Axis Rotary Indexing Heads and 5th Axis Tilting Tables | Machine Tool Manufacturing and CNC Milling Systems |
| Heavy-Duty Industrial Welding Robot Positioners and Turntables | Factory Automation, Robotics, and Joint Kinematics Engineering |
| Precision Multi-Axis Automated Assembly Line Indexing Stations | Aerospace, Defence, and Precision Telecommunications Equipment |
| Satellite Tracking Antennas and Precision Radar Gantry Kinematics | Automotive Assembly Lines and Specialized Tooling Fixtures |
| High-Load Tool Changer Magazines for Large Machining Centers | Industrial Machinery Spare Parts and Transmission Overhaul Providers |
Technical FAQ & Operational Guide
What is the primary advantage of a cycloidal gearbox over a planetary gearbox?
The main advantage is its extreme shock load capacity and lack of sudden tooth shear failure. Because cycloidal drives utilize rolling discs that share loads across roughly 30% of the internal pin arrays simultaneously, they can absorb massive torque spikes. They also offer higher torsional rigidity and lower backlash over extended service lifespans.
Does this gearbox require periodic oil or grease changes?
No. Our high-precision cycloidal series is supplied completely sealed and packed with high-specification synthetic grease. It is engineered for a completely maintenance-free, lubrication-for-life operation under normal industrial workspace parameters.
How do I ensure this gearbox matches my specific servo motor?
The input section of the gearbox uses a modular mounting flange setup. When requesting a quotation, simply supply the exact model number or drawing specifications of your AC servo motor (shaft diameter, pilot diameter, and bolt circle diameter) so our engineering team can configure the input adapter to match your motor.
