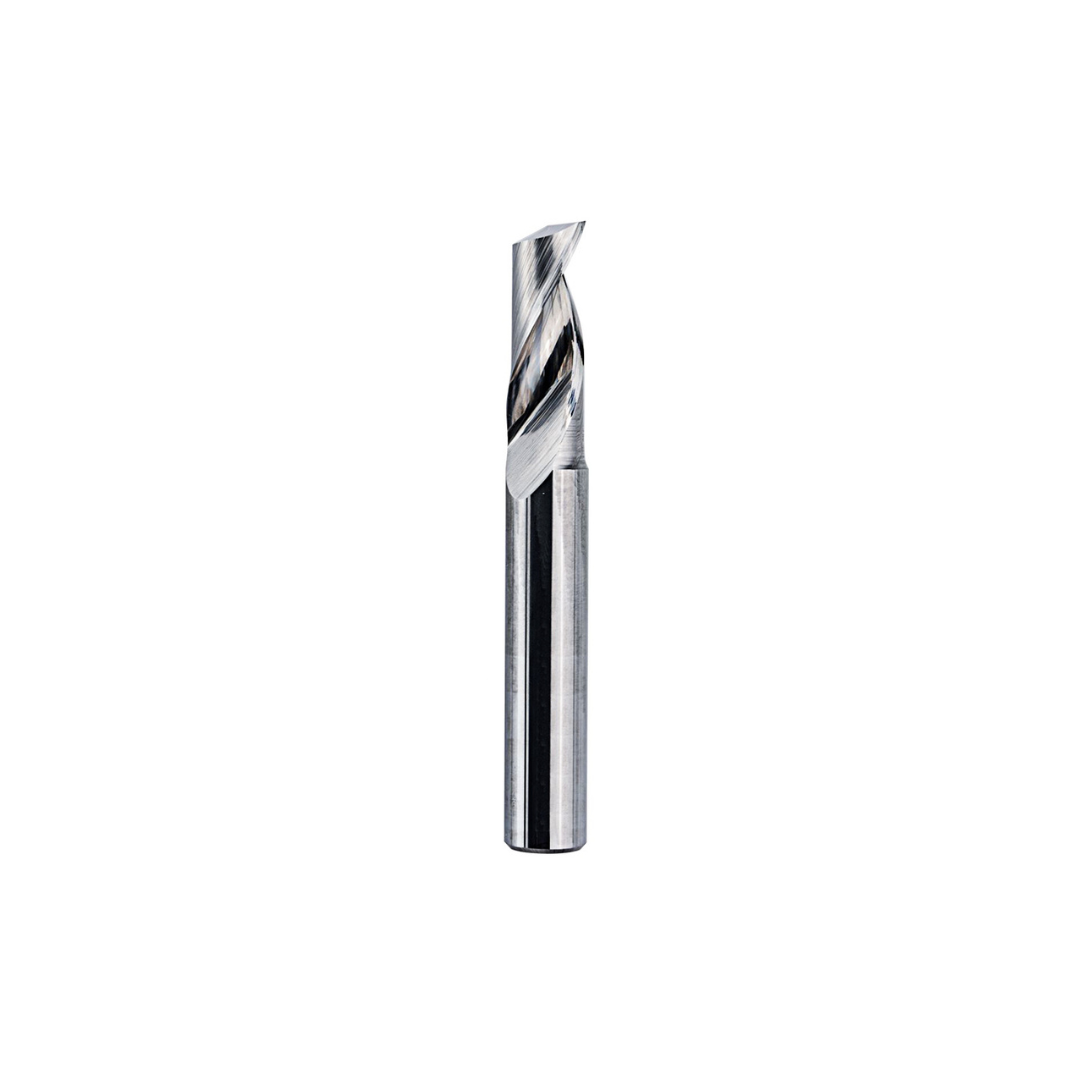

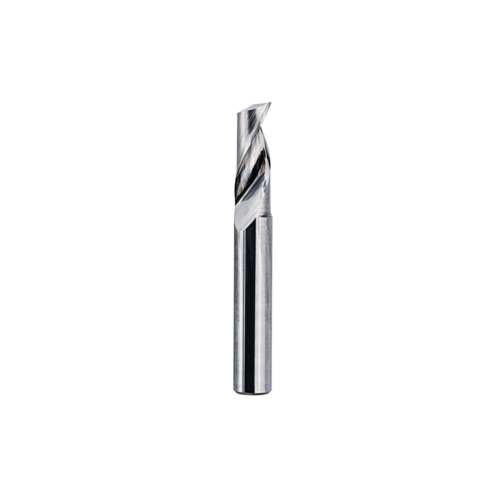

Single Flute Carbide End Mill | 6x42x70mm High-Speed Router Bit

The New Generation Tools 6X42X70 Single Flute End Mill is a specialized cutting tool engineered for high-velocity machining where chip evacuation is paramount. Manufactured from premium K40 grade solid carbide, this end mill offers the perfect combination of hardness and toughness, ensuring long tool life even in high-heat applications. The single-edge spiral design provides a massive flute area that allows for rapid removal of large chips, making it the ideal choice for soft to medium-density materials like acrylic, PVC, MDF, and soft aluminum. By reducing chip re-cutting, this tool maintains lower operating temperatures, which prevents melting in plastics and ensures a clean, mirror-like finish on the workpiece. Whether you are performing deep slotting or high-speed contouring on a CNC router, the 6x42x70 end mill delivers the precision and performance required for professional manufacturing.

High-grade K40 Solid Carbide for maximum wear resistance
Single flute geometry for maximum chip clearance and high feed rates
Upcut spiral design for efficient upward chip removal and cooling
Mirror-polished flute surface to prevent material build-up
Optimized for high-speed spindles (18,000 - 24,000 RPM)
Engineered to provide clean edge finishes in soft and gummy materials
Vibration-reducing architecture for improved surface quality

Engineering Analysis & Technical Data

Technical Parameter	Specification Details
MODEL NUMBER	6X42X70
FLUTE COUNT	1 (Single Flute)
MATERIAL GRADE	Solid Carbide K40
CUTTING DIRECTION	Right-Hand Upcut
HELIX ANGLE	30 Degrees
MECHANICAL	cuttingDiameter: 6 mm \| fluteLength: 42 mm \| overallLength: 70 mm \| shankDiameter: 6 mm

Industrial Applications

Usage Scenario	Target Industry
High-Speed CNC Routing and Milling	Signage and Advertising Industry
Deep Slotting in Acrylic and Plastics	Furniture and Woodworking Fabrication
Edge Finishing in MDF and Soft Woods	Aerospace and Automotive Prototypes
Soft Aluminum and Non-Ferrous Metal Cutting	Interior Design and Architectural Models
Signage Fabrication and 3D Carving	Plastic and Polymer Processing
Furniture and Cabinetry Component Cutting	General Engineering
Composite Material Machining	General Engineering

Technical FAQ

Why should I use a single flute end mill instead of a two-flute?

Single flute end mills have a larger flute area, which is essential for chip evacuation in soft materials like plastics or wood. This prevents the material from melting or clogging the flutes at high RPMs.

What is the benefit of the K40 Carbide grade?

Grade K40 is a micro-grain carbide that offers high hardness for sharp edge retention and high transverse rupture strength, making the tool less likely to snap during heavy cuts compared to standard grades.

Can I use this tool for aluminum?

Yes, this single flute design is excellent for soft aluminum alloys. The large flute helps clear away gummy aluminum chips that often clog multi-flute tools.

Detailed Overview of Single Flute Carbide End Mill | 6x42x70mm High-Speed Router Bit

Advanced Engineering & Integration

high speed single flute carbide end mill 6x42x70. buy solid carbide router bits for mdf online india. best single flute end mill for aluminum cutting. ngt 6mm upcut spiral end mill for plastics. industrial grade cnc router bits for signage ahmedabad

This CNC Router Accessories is preferred for .
