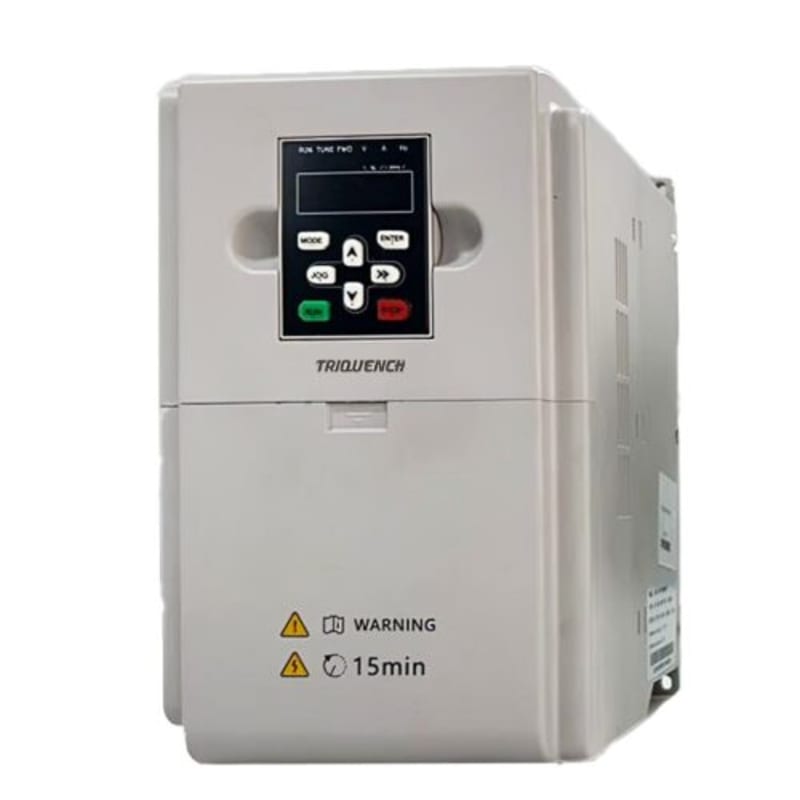

TDL200 VFD Drive | 7.5kW 10HP 3-Phase High-Performance Inverter

The TDL200-7R5G3B is a premier industrial VFD engineered to provide surgical precision over motor speed and torque regulation. Delivering a consistent 7.5kW (10HP) of power, this drive is a cornerstone for modern CNC routing and high-velocity industrial machinery. It features an advanced vector control algorithm that maintains stable operation even under fluctuating loads, significantly reducing energy consumption while extending the operational lifespan of the motor. Designed with high-grade components to resist electrical noise and thermal stress, the TDL200 integrates seamlessly into dense control cabinets. Whether managing high-speed CNC spindles or large-scale conveyor systems, this drive offers the reliability and repeatable quality essential for high-output production environments.

High-torque vector control for superior motor performance
Advanced energy-saving technology for reduced operational costs
Precision speed regulation with rapid dynamic responsiveness
Comprehensive protection against over-voltage, over-current, and phase loss
Durable architecture designed for 24/7 continuous industrial use
User-friendly digital interface for intuitive parameter configuration
Excellent heat dissipation for stable performance in high-duty cycles

Engineering Analysis & Technical Data

Technical Parameter	Specification Details
MODEL NUMBER	TDL200-7R5G3B
SERIES	TDL200
POWER RATING KW	7.5 kW
MOTOR RATING HP	10 HP
INPUT VOLTAGE	3-Phase 380V ~ 440V AC (50/60Hz)
OUTPUT VOLTAGE	3-Phase 0V ~ Input Voltage
RATED OUTPUT CURRENT	17.0 A
OUTPUT FREQUENCY	0.00 ~ 600.00 Hz
MECHANICAL	weight: 2.8 kg \| coolingType: Fan Cooling \| protectionRating: IP20

Industrial Applications

Usage Scenario	Target Industry
High-Performance CNC Router Spindle Control	Precision Engineering and Machine Tooling
Industrial Fans and Centrifugal Blowers	Material Handling and Logistics
Heavy-Duty Conveyor and Logistics Systems	Textile and Apparel Production
Industrial Pumps and Fluid Management	HVAC and Industrial Fluid Control
Metal Fabrication and Milling Machinery	Furniture and Signage Fabrication
Automated Packaging and Sorting Lines	General Engineering
Textile Winding and Fabric Processing	General Engineering

Technical FAQ

Is the TDL200 drive suitable for 10HP industrial motors?

Yes, the TDL200-7R5G3B is specifically rated for 7.5kW which directly corresponds to 10HP motors, ensuring stable performance for heavy-duty industrial loads.

Does this VFD support high-speed spindle operations?

Absolutely. With an output frequency of up to 600Hz, this drive is perfectly suited for high-speed CNC spindles, including those rated at 24,000 RPM.

Can I program this drive for automated sequences?

Yes, the TDL200 series features a built-in multi-step speed function and supports standard industrial communication protocols like Modbus (RS485) for integration with PLCs.

Detailed Overview of TDL200 VFD Drive | 7.5kW 10HP 3-Phase High-Performance Inverter

Advanced Engineering & Integration

high performance tdl200 7.5kw vfd for cnc machines. buy tdl200-7r5g3b inverter online india. best 10hp vfd for high speed industrial motors. tdl200 drive wiring and technical support ahmedabad. industrial grade 7.5kw vfd for conveyor systems

This CNC Router Accessories is preferred for .
