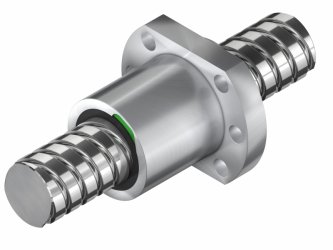

FSC Precision Ball Screw Nut | High-Speed Internal Circulation

The FSC Precision Ball Screw Nut represents the pinnacle of high-speed linear motion technology. Unlike standard ball nuts, the FSC (Fine Surface Circulation) series is engineered with a specialized internal return system that allows for smoother ball transitions and significantly higher rotational speeds. This design minimizes mechanical noise and vibration, making it ideal for high-precision CNC routers and automation equipment where surface finish and positioning accuracy are paramount. Forged from induction-hardened bearing steel, the FSC nut provides exceptional axial rigidity and a zero-backlash potential when correctly paired with precision-ground screws. Its compact profile and high-lead compatibility ensure that it can handle rapid traversing speeds without compromising the surgical precision required for complex machining cycles.

High-speed internal circulation for ultra-smooth linear motion
Advanced return system reduces mechanical noise and vibration
Minimal backlash for improved positioning and repeatability
Compact industrial design suitable for space-constrained CNC axes
Durable induction-hardened steel for extended operational lifespan
Optimized for high-lead screws to support rapid machine traversing

Engineering Analysis & Technical Data

Technical Parameter	Specification Details
MODEL SERIES	FSC High-Speed Series
NUT TYPE	Single Nut with Internal Circulation
MATERIAL	Hardened High-Grade Bearing Steel
MECHANICAL	precisionGrade: Industrial High-Precision Grade \| circulationType: Internal Deflector Return \| motionType: Rotary-to-Linear Precision Conversion

Industrial Applications

Usage Scenario	Target Industry
High-Speed CNC Router Axis Drive Systems	Machine Tool Manufacturing and CNC Fabrication
Precision Automated Assembly and Pick-and-Place	High-Tech Electronics and Semiconductor Industry
High-Resolution Medical and Laboratory Equipment	Medical Technology and Scientific Instrumentation
Semiconductor and Electronics Manufacturing Tools	Industrial Automation and Robotics
Fast-Traversing Laser Cutting and Engraving Systems	Precision Tool and Die Engineering
Advanced Prototyping and Production Machinery	General Engineering

Technical FAQ

What is the primary benefit of the FSC series internal circulation?

The FSC design allows the ball bearings to stay within the nut body during their return cycle. This leads to much higher allowable RPMs, smoother movement, and lower noise compared to external return tube designs (like standard SFU nuts).

Is the FSC nut compatible with any ball screw?

FSC nuts must be matched to screws of the same diameter, pitch (lead), and thread profile. Because of the precision internal deflectors, they are typically used with precision-ground or high-quality rolled screws to ensure performance.

Can this nut be used for vertical (Z-axis) applications?

Yes, its high axial rigidity and minimal backlash make it excellent for Z-axis control. However, ensure that your motor system includes a brake to prevent 'back-driving' due to the weight of the spindle when the power is off.
