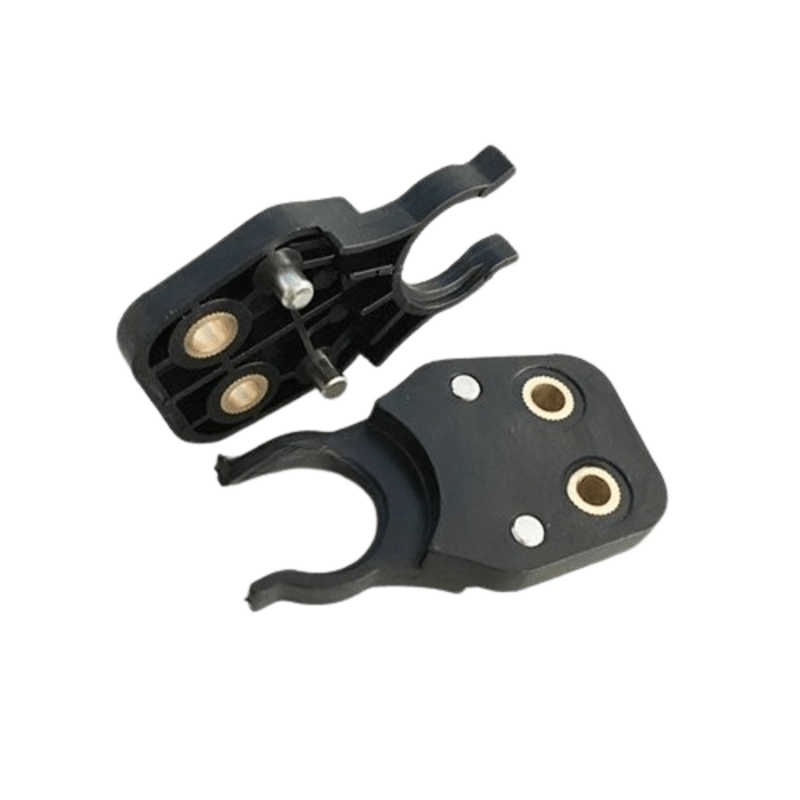

HSK25E ATC Tool Holder Fork | High-Strength CNC Tool Changer Clips

The TriQuench HSK25E Tool Holder Fork is a precision-engineered component essential for the reliable operation of high-speed Automatic Tool Changer (ATC) systems. Specifically designed for HSK E 25 tool holders, these forks are manufactured from a high-performance reinforced polymer that balances extreme structural rigidity with specialized elasticity to prevent tool holder marring. This material is chosen for its superior wear resistance and low-friction properties, ensuring that tool changes remain smooth and consistent even during high-frequency cycles typical of dental, jewelry, and precision electronic CNC machining. The fork's geometry is surgically precise, providing a secure, stable grip that eliminates tool wobble during magazine rotation, yet facilitates a clean, rapid release when the high-speed spindle engages. Optimized for modern industrial CNC environments, these forks are a critical upgrade for maintaining machine productivity and spindle safety.

High-density reinforced polymer construction for maximum longevity
Surgically calibrated for HSK E 25 tool holder flange dimensions
Engineered for high-speed, vibration-free Automatic Tool Changes (ATC)
Wear-resistant material prevents friction-related degradation over thousands of cycles
Anti-marring design protects expensive HSK tapers from surface scratches
Lightweight architecture reduces mechanical stress on tool magazine motors
Chemical and oil resistant for consistent performance in industrial environments

Engineering Analysis & Technical Data

Technical Parameter	Specification Details
MODEL NUMBER	HSK25E-ATC
TOOL HOLDER STANDARD	HSK E 25
MATERIAL GRADE	Reinforced Anti-Static POM / Nylon
COLOR	Industrial White/Black
MOUNTING STYLE	Universal Bolt-on / Slide-in
MECHANICAL	weight: 0.035 kg \| clampingForce: Calibrated for HSK E 25 Standard \| operatingTempRange: -20°C to +85°C \| protectionRating: Anti-Static / Oil Resistant

Industrial Applications

Usage Scenario	Target Industry
High-Speed CNC Router ATC Magazines	Dental and Medical Device Manufacturing
Dental Milling Machine Tool Changers	Electronics and Semiconductor Fabrication
Precision Jewelry and Watchmaking CNC Centers	Jewelry and Luxury Goods Machining
Electronic Component and PCB Machining Stations	Precision Prototype Engineering
Small-Scale Rotary and Linear Tool Changers	High-Speed Woodworking and Signage
Custom Machine Building and ATC Retrofitting	General Engineering
Industrial Robotics Tool Management Systems	General Engineering

Technical FAQ

Will these forks damage my HSK E 25 tool holders?

No. These forks are manufactured from a specialized high-density polymer that is specifically designed to be softer than the tool holder's steel, ensuring secure clamping without any surface marring or scratches.

Are these forks compatible with all HSK25E holders?

Yes, they are engineered to the international HSK E 25 standard. They will work with any genuine HSK25E tool holder used in high-speed spindles such as HSD, Hiteco, and others.

What is the expected lifespan of an HSK25E tool fork?

While highly durable, tool forks are wear items. Under standard 24/7 industrial operation, we recommend inspecting them every 6 months for any signs of fatigue or loss of clamping tension to maintain tool change reliability.

Detailed Overview of HSK25E ATC Tool Holder Fork | High-Strength CNC Tool Changer Clips

Advanced Engineering & Integration

high strength hsk25e tool holder fork for dental milling. buy hsk e 25 atc forks online ahmedabad. best wear resistant clips for hsk25e tool changers. replacement hsk25e tool fork dimensions and material. industrial grade tool magazine components india

This CNC Router Accessories is preferred for .
