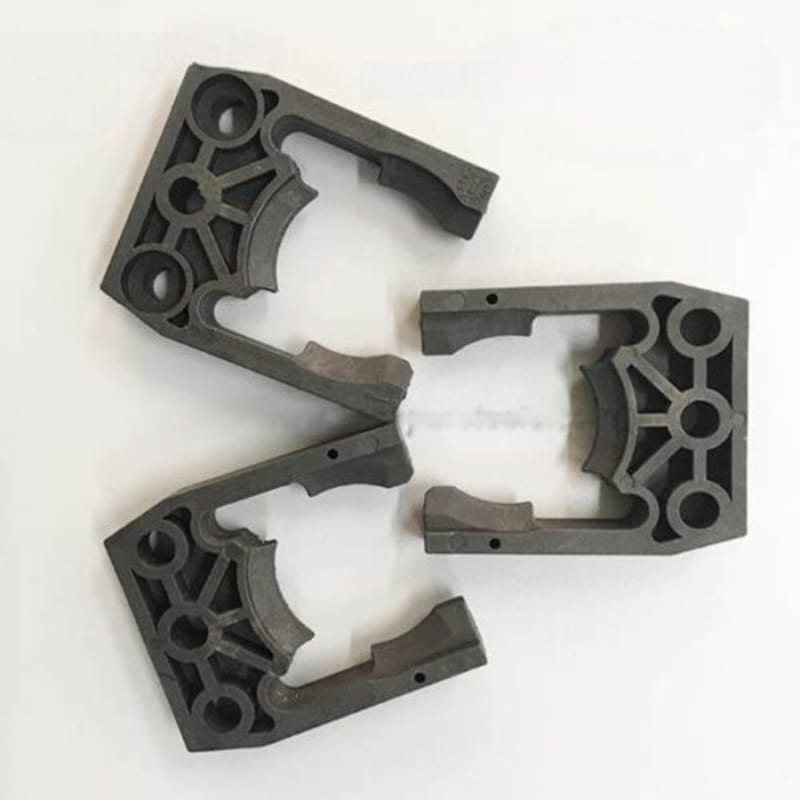

ISO30 ATC Tool Holder Fork | High-Strength Woodworking CNC Tool Grippers

The TriQuench ISO30 Tool Holder Fork is a precision-engineered component essential for the reliable operation of Automatic Tool Changer (ATC) systems in the woodworking and signage industries. Specifically designed for ISO30 tool holders, these forks are manufactured from a high-performance reinforced polymer that balances extreme structural rigidity with specialized elasticity to prevent tool holder marring. This material is chosen for its superior wear resistance and low-friction properties, ensuring that tool changes remain smooth and consistent even during high-frequency production cycles. The fork's geometry is surgically precise, providing a secure, stable grip that eliminates tool wobble during magazine rotation, yet facilitates a clean, rapid release when the spindle engages. Optimized for high-speed spindles (HSD, Hiteco, etc.), these forks are a critical upgrade for maintaining machine productivity and operational safety.

High-density reinforced polymer construction for maximum longevity
Specifically calibrated for ISO30 tool holder flange dimensions
Engineered for high-speed, vibration-free Automatic Tool Changes (ATC)
Wear-resistant material prevents friction-related degradation
Elasticity optimized to protect tool holder surfaces from scratches
Lightweight architecture reduces mechanical stress on tool magazine motors
UV and temperature stable for consistent performance in industrial environments

Engineering Analysis & Technical Data

Technical Parameter	Specification Details
MODEL NUMBER	ISO30-ATC-W
TOOL HOLDER STANDARD	ISO30
MATERIAL GRADE	High-Strength Reinforced POM / Nylon
COLOR	Industrial White
MOUNTING STYLE	Universal Slide-in / Bolt-on
MECHANICAL	weight: 0.065 kg \| clampingForce: Calibrated for ISO30 Standard \| operatingTempRange: -20°C to +80°C \| protectionRating: Anti-Static / Oil Resistant

Industrial Applications

Usage Scenario	Target Industry
Woodworking CNC Router ATC Magazines	Furniture and Woodworking Automation
Rotary and Linear Tool Changer Assemblies	Signage and Acrylic Fabrication
High-Precision Milling Machine Tool Storage	Machine Tool Manufacturing
Automated Signage and Acrylic Fabrication Centers	Industrial Robotics and Integration
Furniture Manufacturing and Cabinetry Automation	Precision Prototype Engineering
Multi-Spindle CNC Machining Stations	General Engineering
Industrial Robotics Tool Management Systems	General Engineering

Technical FAQ

Will these forks scratch my expensive tool holders?

No. These forks are manufactured from a specialized high-density polymer that is specifically designed to be softer than the tool holder's steel, ensuring that tool changes are secure without causing any surface damage or marring.

Are these forks compatible with all ISO30 tool holders?

Yes, they are engineered to the international ISO30 standard. They will work with any genuine ISO30 tool holder, including those used in HSD, Hiteco, and Italian spindle systems common in woodworking.

What is the expected lifespan of an ISO30 tool fork?

While highly durable, tool forks are considered a wear item. Under standard industrial 24/7 operation, we recommend inspecting them every 6 months for any signs of fatigue or loss of clamping tension to maintain tool change reliability.

Detailed Overview of ISO30 ATC Tool Holder Fork | High-Strength Woodworking CNC Tool Grippers

Advanced Engineering & Integration

high strength iso30 tool holder fork for woodworking cnc. buy iso30 atc forks online ahmedabad. best wear resistant clips for iso30 tool changers. replacement iso30 tool fork dimensions and material. industrial grade tool magazine components india

This CNC Router Accessories is preferred for .
