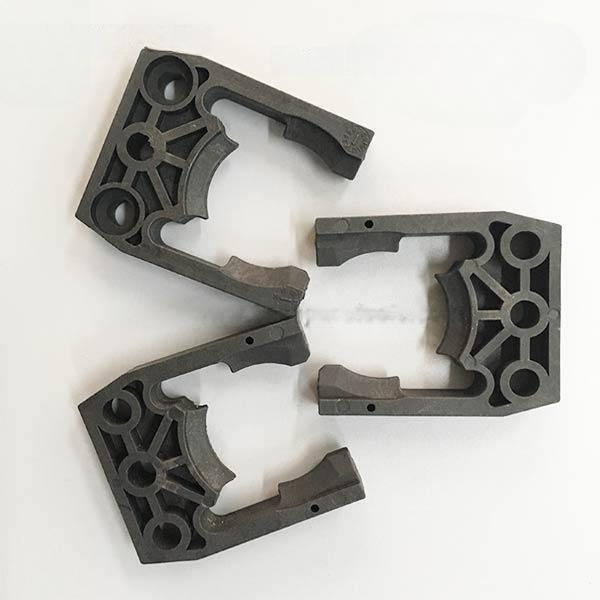

ISO30 ATC Toolholder Forks | High-Strength Woodworking Grippers

The ISO30 ATC Toolholder Forks are essential components for modern woodworking machinery requiring rapid, automated tool swaps. Designed specifically for the ISO30 taper profile, these grippers are manufactured from specialized, high-impact reinforced engineering plastic. This material provides the necessary elasticity to securely 'snap' onto the toolholder flange while maintaining the rigid structural integrity needed to hold heavy tooling during magazine rotation or linear movement. The non-marring surface of the plastic protects the precision-ground finish of ISO30 toolholders from scratches and metallic wear, extending the life of your spindle interface. Optimized for high-cycle industrial environments, these forks ensure consistent tool alignment, reducing the risk of tool-change errors and maximizing the uptime of professional CNC routing operations.

Perfectly compatible with standard ISO30 toolholders
Engineered for rapid and smooth tool transitions in ATC systems
Manufactured from high-strength, wear-resistant reinforced plastic
Non-marring surface protects toolholder taper and flange integrity
High temperature and chemical resistance for industrial workshops
Precision-molded geometry ensures stable and secure tool clamping

Engineering Analysis & Technical Data

Technical Parameter	Specification Details
MODEL NUMBER	ISO30-ATC-GRIPPER
COMPATIBILITY	ISO30 Toolholders
MATERIAL	High-Impact Reinforced Engineering Plastic
APPLICATION TYPE	Automatic Tool Changer (ATC)
MECHANICAL	grippingForce: Industrial High-Stability Rated \| thermalStability: Optimized for High-RPM Workshop Environments \| installation: Standard Carousel or Linear Magazine Interface

Industrial Applications

Usage Scenario	Target Industry
ATC Woodworking CNC Routers (Carousel and Linear Type)	Furniture and Wood Products Manufacturing
Furniture Manufacturing and Cabinetry Machining Centers	Signage and Architectural Model Fabrication
Automated Panel Processing and Signage Production	Interior Design and Modular Kitchen Production
Industrial Spindles utilizing ISO30 Tooling Systems	Machine Tool Manufacturing and Spare Parts
Small to Large-Scale CNC Automated Workshops	Automated Woodworking Solutions

Technical FAQ

How do I know when to replace my ISO30 tool forks?

You should inspect forks regularly for signs of stress whitening, cracks, or excessive wear on the inner gripping surface. If a toolholder feels loose or if the ATC alignment seems slightly off during a change, it is often due to a worn or fatigued fork.

Are these forks compatible with HSK30 or BT30 toolholders?

No, these are specifically molded for the ISO30 flange geometry. HSK and BT series have different flange thicknesses and diameters. Using the wrong fork can result in the tool falling out of the magazine, causing spindle damage.

Do these forks require any special maintenance?

The reinforced plastic is designed to be low-maintenance. However, keeping them free of excessive sawdust and ensuring they are not exposed to harsh solvents will significantly extend their operational life.

Detailed Overview of ISO30 ATC Toolholder Forks | High-Strength Woodworking Grippers

Advanced Engineering & Integration

high strength iso30 toolholder forks for automatic tool changers. buy reinforced plastic iso30 tool clips online india. best price atc gripper forks for woodworking cnc machines. iso30 tool changer gripper technical dimensions ahmedabad. durable toolholder clips for high speed woodworking magazines

This CNC Router Accessories is preferred for .
