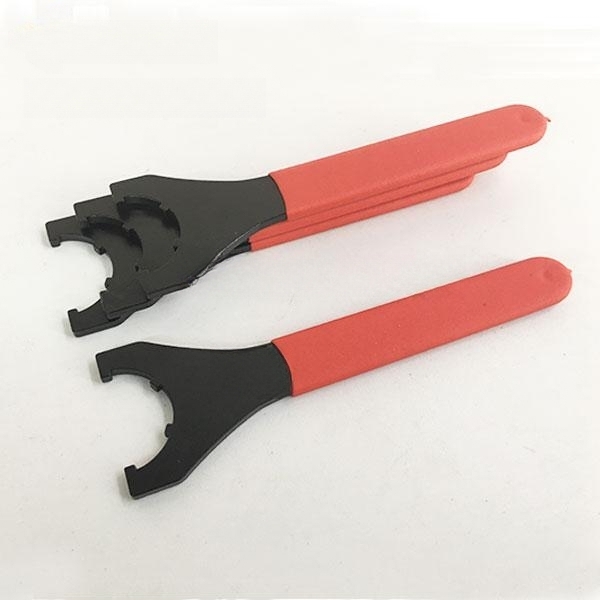

Industrial CNC Spanner Wrench - Precision Collet Nut Tightening Tool

The Industrial CNC Spanner Wrench series is an essential maintenance tool for any precision machining environment. Specifically engineered to match the profiles of ER20A (Hex) and ER32UM (Hook/Notch) collet nuts, these wrenches facilitate the secure clamping of cutting tools into tool holders. Each wrench is forged from high-quality carbon steel and heat-treated for superior hardness, preventing the tool from slipping or marring the nut surface during high-torque applications. The ergonomic handle design ensures a comfortable grip, allowing operators to achieve the exact torque specifications required to prevent tool runout or slippage. Whether for manual tool changes or setting up ATC (Automatic Tool Changer) carousels, these wrenches provide the reliability and efficiency needed for professional CNC routing and milling operations.

Forged from high-carbon steel for maximum torque resistance
Heat-treated surfaces to prevent wear and slipping
Ergonomically designed handle for improved leverage and comfort
Precision-fit profiles for A-type (Hex) and UM-type (Hook) nuts
Corrosion-resistant finish for long-term workshop durability
Essential for achieving proper collet clamping force

Engineering Analysis & Technical Data

Technical Parameter	Specification Details
MODEL NUMBER	ER20A / ER32UM Series
TOOL TYPE	Spanner Wrench
MATERIAL	Hardened High-Carbon Steel
GRIP TYPE	Ergonomic Anti-Slip Handle
MECHANICAL	applicationType: Collet Nut Tightening & Removal \| precisionGrade: Industrial Professional Standard \| compatibility: ER20A, ER25UM, ER32UM, ER40UM

Industrial Applications

Usage Scenario	Target Industry
Tightening and loosening ER Collet Nuts	CNC Woodworking and Cabinetry
CNC Tool Holder Maintenance and Setup	Metalworking and Engineering
Tooling Preparation for ATC Spindles	Aerospace and Automotive Machining
Precision Milling and Engraving Tool Changes	Signage and Acrylic Fabrication
Industrial Lathe and Router Operations	Mold and Die Manufacturing
Machine Shop Tool Kits	General Engineering

Technical FAQ

Can I use an ER32UM wrench on an ER20A nut?

No. The ER20A nut typically has a hexagonal profile, while the ER32UM nut uses a notched 'hook' profile. You must use the wrench that matches the specific geometry of your collet nut to ensure safety and prevent damage.

Why is a specialized wrench better than a standard adjustable wrench?

Standard adjustable wrenches often have 'play' and can easily slip, rounding off the corners of your expensive collet nuts. CNC spanner wrenches are precision-molded to fit the nut exactly, ensuring maximum surface contact and safer torque application.

How do I know which size I need?

The size is determined by the collet series (ER16, ER20, ER25, ER32, ER40) and the nut type (A-type hex, M-type mini, or UM-type hook). Check the markings on your tool holder or measure the nut diameter to confirm.

Detailed Overview of Industrial CNC Spanner Wrench - Precision Collet Nut Tightening Tool

Advanced Engineering & Integration

heavy duty ER32UM spanner wrench for cnc tool holders. buy precision ER20A collet nut wrench online india. best price cnc tool holder tightening tool for woodworking. industrial hook spanner specifications for ER32UM nuts. durable high carbon steel wrench for cnc router maintenance

This CNC Router Accessories is preferred for .
