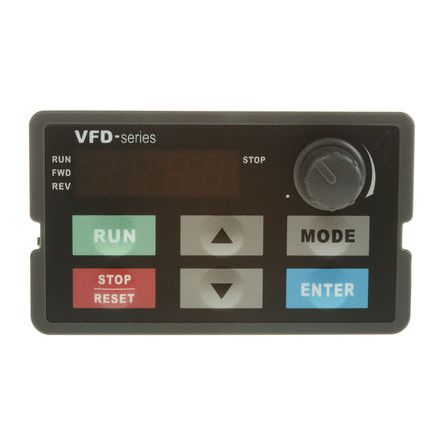

Universal VFD Digital Keypad | Spindle Speed & Parameter Controller

The Universal VFD Keypad is a critical HMI (Human Machine Interface) component designed to bridge the gap between complex industrial drives and the CNC operator. Engineered for high-speed CNC router environments, this keypad allows for the instantaneous modulation of spindle RPM, rotational direction, and operational stop/start sequences. Beyond simple speed control, it provides a comprehensive gateway to the VFD’s internal parameter set, enabling users to fine-tune acceleration/deceleration ramps, torque compensation, and safety frequency limits. The high-contrast digital display ensures clear visibility of output frequency and fault codes, facilitating rapid troubleshooting and precise machine setup. Whether mounted directly on the drive or extended to a machine control panel via a communication cable, this keypad is essential for maximizing the performance and safety of VFD-controlled spindles.

High-contrast digital display for real-time frequency and parameter monitoring
Full control over spindle speed modulation and rotational direction
Tactile button interface for precise parameter input and programming
Integrated Emergency Stop and Start/Run function keys
Direct access to motor acceleration, deceleration, and torque settings
Compatible with a wide range of industrial Variable Frequency Drives

Engineering Analysis & Technical Data

Technical Parameter	Specification Details
MODEL NUMBER	VFD-KEYPAD-SERIES
DISPLAY TYPE	Digital LED/LCD Multi-Segment
INTERFACE TYPE	Standard VFD Communication Port
CONTROL FUNCTIONS	Frequency, Direction, Parametric Configuration, Fault Reset
MECHANICAL	mounting: Direct Drive Mount or Remote Panel Compatible \| durability: Industrial Grade Membrane Switches \| compatibility: Optimized for TriQuench and Standard Industrial VFDs

Industrial Applications

Usage Scenario	Target Industry
CNC Router Spindle Speed Modulation	Machine Tool Manufacturing and CNC Fabrication
Industrial VFD-Controlled Pumping Systems	Industrial Automation and Process Control
Automated Conveyor Motor Speed Regulation	Textile and Apparel Machinery
HVAC Fan and Blower Frequency Control	Automotive and Aerospace Engineering
Machine Tool Parameter Configuration	HVAC and Building Management Systems
Testing and R&D Motor Control Stations	General Engineering

Technical FAQ

Can I mount this keypad away from the VFD?

Yes. While many keypads mount directly to the front of the drive, they can be extended to your machine's main control panel using a standard VFD communication extension cable, allowing you to control the spindle without opening the electrical cabinet.

Does this keypad work with all VFD brands?

This keypad is designed for universal compatibility with standard industrial protocols used by major VFD manufacturers. However, we recommend verifying the pin-out and communication port type of your specific drive before purchase.

How do I use the keypad to reset a VFD error?

Most VFD keypads have a dedicated 'Reset' or 'Stop/Reset' button. When the drive trips due to an over-current or over-voltage fault, pressing this button will clear the fault code and return the drive to a ready state once the issue is resolved.
