HGR 15C Linear Guide Rail | High-Precision Linear Motion Track

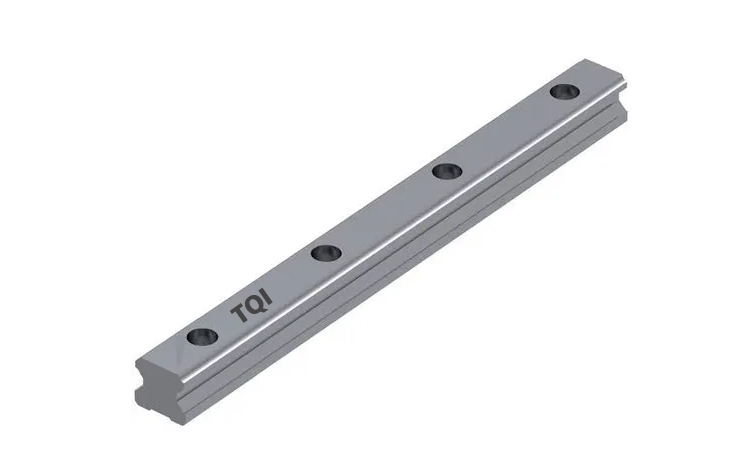

The HGR 15C Linear Guide Rail is a high-performance cornerstone for precision machinery, offering an ultra-smooth track for linear motion. Featuring a 15mm nominal width, this rail is designed with a four-row circular arc groove architecture, allowing it to sustain equal load capacities in all directions while maintaining extreme rigidity. Manufactured from high-tensile alloy steel and featuring induction-hardened raceways, the HGR 15C ensures minimal friction and long-term repeatable accuracy. Its self-aligning capability helps absorb minor mounting surface errors, making it the ideal choice for CNC routers, automated production lines, and high-precision laboratory equipment that requires vibration-free linear travel.

Four-row load-bearing design for equal capacity in all directions
Induction-hardened raceways for superior wear resistance
Self-aligning capability to absorb mounting surface variations
Smooth travel performance with a low friction coefficient
Precision-ground surfaces for consistent linear accuracy
High structural rigidity to minimize deflection under axial loads
Compatible with all standard HGH15 and HGW15 series blocks

Engineering Analysis & Technical Data

Technical Parameter	Specification Details
MODEL NUMBER	HGR 15C
NOMINAL WIDTH	15 mm
MOUNTING HOLE PITCH	60 mm
MOUNTING BOLT SIZE	M4 x 16
ACCURACY GRADE	H (High) Precision
MECHANICAL	material: Hardened Alloy Steel \| surfaceHardness: HRC58-62 \| protectionRating: Rust-Inhibitive Oil Coating

Industrial Applications

Usage Scenario	Target Industry
CNC Router X, Y, and Z Axis Support	Machine Tool Manufacturing
Automated Production and Assembly Lines	Industrial Automation and Robotics
Precision X-Y-Z Laboratory Stages	Furniture and Signage Fabrication
Industrial Laser and Plasma Cutting Systems	Medical Technology and Instrumentation
Packaging and Labeling Machinery	Electronics and PCB Assembly
3D Printing and Additive Manufacturing Equipment	General Engineering
High-Precision Measurement Instrumentation	General Engineering

Technical FAQ

What is the difference between HGR 15C and other series?

The HGR 15C refers specifically to the rail profile designed for high-load 'C' type carriages. It offers superior rigidity and a 4-row ball circulation design that ensures equal load carrying in all directions.

Can I get this rail in custom lengths?

Yes, while standard lengths are available, we can precision-cut the HGR 15C rail to your exact specifications. Please ensure to specify the end-hole distances (E-values) for mounting accuracy.

How do I prevent rust on my HGR 15C rails?

The rails are supplied with a rust-inhibitive oil. For ongoing protection, we recommend maintaining a thin film of industrial lubricant on the raceways and wiping away debris regularly.
