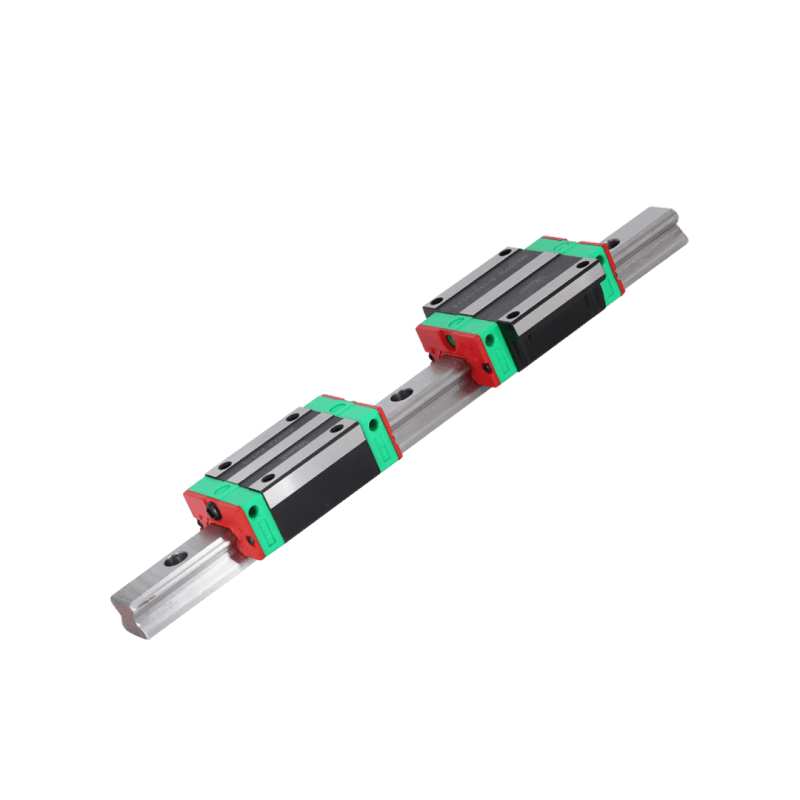

TriQuench HGW 15CA BG LM Block | High-Precision Flange Type Linear Carriage

The TriQuench HGW 15CA BG is a premier Flange Type (HGW) linear motion carriage specifically designed for precision-heavy industrial environments. Engineered with a 'High Load' (CA) configuration, this block provides exceptional structural rigidity and optimized load distribution across its four rows of high-grade ball bearings. Its wide flange profile allows for secure mounting from either the top or bottom, providing ultimate flexibility for machine builders while maintaining a high torque-resistant architecture. This makes it the ideal choice for the primary axes of CNC routers and automated assembly lines. Manufactured from induction-hardened alloy steel, the TriQuench HGW 15CA BG ensures smooth, low-friction travel and high repeatable precision even under demanding axial and radial stresses. With integrated dust protection and a high-performance lubrication system, this block is built for long-term reliability in professional fabrication workflows.

High-rigidity flange design for superior lateral stability
Four-row ball circulation for equal load capacity in all directions
Heavy Load (CA) rating optimized for precision CNC axes
Precision-ground raceways for ultra-smooth travel and low noise
Hardened alloy steel construction for extended wear resistance
TriQuench built-in wiper system for effective dust and debris protection
Standardized mounting for easy integration with HGR15 rails

Engineering Analysis & Technical Data

Technical Parameter	Specification Details
MODEL NUMBER	HGW 15CA BG
BLOCK TYPE	Flange Type (Wide)
NOMINAL WIDTH	15 mm
LOAD TYPE	High Load (CA)
PRE TENSION	Z0 / ZA Standard
ACCURACY GRADE	H (High) Precision
MECHANICAL	weight: 0.19 kg \| material: Induction-Hardened Alloy Steel \| protectionRating: Dual-Lip Dust Seal Integrated

Industrial Applications

Usage Scenario	Target Industry
Industrial TriQuench CNC Router Axis Support	Precision Machine Tool Manufacturing
Automated Pick-and-Place Machinery	Industrial Automation and Robotics
Precision X-Y Tables and Linear Positioning Stages	Furniture and Signage Fabrication
Industrial Robotics and Warehouse Automation Tracks	Aerospace and Automotive Component Engineering
High-Precision TriQuench Measurement and Inspection Equipment	Electronics and PCB Assembly
3D Printing and Additive Manufacturing Systems	General Engineering
Medical Diagnostic and Scanning Equipment	General Engineering

Technical FAQ

What is the primary benefit of the Flange (HGW) type block?

Flange type blocks offer a wider mounting surface compared to square blocks, which significantly improves lateral stability and allows for versatile mounting from either the top or bottom of the carriage.

Is this TriQuench block compatible with standard HGR15 rails?

Yes, it is designed for a perfect fit with standard HGR15 series linear rails. We recommend using TriQuench-branded rails to ensure maximum precision and longevity.

How should I maintain my TriQuench LM block?

Maintenance involves regular lubrication with lithium-based grease through the integrated grease nipple every 100km of travel or every 3 months, depending on the debris level in your environment.
